High-Purity Silicon Metal for Aluminum Alloy Casting
Silicon Metal 3303, 2202, and 1101 are premium metallurgical silicon grades extensively utilized in aluminum alloy production, silicone chemicals, polysilicon manufacturing, refractory materials, and steelmaking applications. These classifications are based on maximum permissible levels of iron (Fe), aluminum (Al), and calcium (Ca), which critically impact alloy performance, purity standards, and processing efficiency.
For aluminum alloy casting and smelting operations, lower impurity grades including Silicon Metal 3303, 2202, and 1101 deliver superior mechanical properties, enhanced corrosion resistance, improved fluidity characteristics, and reduced defect incidence. With increasing demand across automotive lightweighting, renewable energy, electronics, and advanced manufacturing sectors, high-purity silicon metal has emerged as an indispensable industrial raw material.
Understanding Silicon Metal
Silicon Metal, alternatively known as Industrial Silicon or Metallurgical Silicon, is manufactured through the reduction of high-purity quartz with carbon-based materials in submerged arc furnaces operating at temperatures exceeding 2,000°C. The resultant product typically contains over 98% silicon content, with carefully regulated levels of iron, aluminum, calcium, and other trace elements.
Distinct from ferrosilicon which contains substantial iron percentages, silicon metal is primarily employed where elevated silicon purity is essential. The material presents as a silver-gray, metallic, brittle solid exhibiting exceptional heat resistance, oxidation resistance, and alloying performance characteristics.
Silicon Metal Grade Classification System
The numerical designation system for silicon metal grades indicates maximum impurity concentrations for Fe, Al, and Ca elements.
| Grade |
Si (%) Min |
Fe (%) Max |
Al (%) Max |
Ca (%) Max |
Main Application |
| 553 |
98.5 |
0.5 |
0.5 |
0.3 |
General aluminum alloy production |
| 441 |
99.0 |
0.4 |
0.4 |
0.1 |
Aluminum alloy and silicone chemicals |
| 3303 |
99.3 |
0.3 |
0.3 |
0.03 |
High-grade aluminum alloy |
| 2202 |
99.5 |
0.2 |
0.2 |
0.02 |
Chemical and electronic applications |
| 1101 |
99.7 |
0.1 |
0.1 |
0.01 |
Polysilicon and semiconductor feedstock |
As impurity concentrations decrease, silicon purity increases proportionally, resulting in enhanced performance characteristics for demanding industrial applications. Grades 2202 and 1101 are frequently selected when stringent chemical composition control is required.
Technical Specifications: 3303, 2202, and 1101 Grades
| Item |
3303 |
2202 |
1101 |
| Silicon (Si) |
≥99.3% |
≥99.5% |
≥99.7% |
| Iron (Fe) |
≤0.30% |
≤0.20% |
≤0.10% |
| Aluminum (Al) |
≤0.30% |
≤0.20% |
≤0.10% |
| Calcium (Ca) |
≤0.03% |
≤0.02% |
≤0.01% |
| Appearance |
Silver-gray metallic solid |
| Melting Point |
Approximately 1414°C |
| Density |
2.33 g/cm³ |
| Standard Sizes |
0-1mm, 1-3mm, 3-10mm, 10-50mm, 10-100mm |
| Packaging |
1 MT Jumbo Bag or Customized Packaging |
Critical Role in Aluminum Alloy Casting
Silicon represents one of the most vital alloying elements in aluminum casting alloys. Silicon incorporation enhances fluidity during casting processes, reduces shrinkage phenomena, improves wear resistance properties, and strengthens corrosion resistance capabilities.
Numerous automotive components, engine blocks, transmission housings, wheels, and structural castings depend on aluminum-silicon alloy systems due to their exceptional strength-to-weight ratios. Silicon Metal 3303 and 2202 are commonly selected for these applications as their reduced impurity levels help maintain alloy consistency and minimize casting defects.
Compared with lower-purity alternatives, high-purity silicon metal contributes to more stable metallurgical performance and enhanced mechanical properties in finished aluminum products.
Comparative Analysis: 3303 vs 2202 vs 1101
| Factor |
3303 |
2202 |
1101 |
| Purity Level |
High |
Very High |
Ultra High |
| Aluminum Alloy Production |
Excellent |
Excellent |
Good |
| Silicone Chemicals |
Good |
Excellent |
Excellent |
| Polysilicon Production |
Limited |
Suitable |
Preferred |
| Semiconductor Applications |
Not Recommended |
Partial |
Preferred Feedstock |
| Relative Cost |
Lower |
Medium |
Higher |
Silicon Metal vs Ferrosilicon Comparison
| Property |
Silicon Metal |
Ferrosilicon |
| Silicon Content |
98%-99.9% |
45%-75% |
| Iron Content |
Very Low |
High |
| Main Use |
Aluminum, Chemicals, Electronics |
Steelmaking Deoxidizer |
| Purity Requirement |
High |
Medium |
| Semiconductor Industry |
Suitable |
Not Suitable |
Although both materials contain silicon, their application domains are fundamentally distinct. Silicon metal is selected when purity is critical, whereas ferrosilicon is primarily utilized in steelmaking and foundry operations.
Primary Industrial Applications
Aluminum Alloy Manufacturing
Silicon metal enhances casting fluidity, wear resistance, hardness characteristics, and corrosion resistance properties. It is extensively employed across automotive, aerospace, and transportation industries.
Silicone Chemical Industry
High-purity silicon metal serves as the fundamental raw material for manufacturing silicone rubber, silicone oil, silicone resin, sealants, and specialty chemical compounds.
Polysilicon and Solar Energy
Grades including 2202 and 1101 constitute important feedstocks for polysilicon production, supporting photovoltaic solar panel manufacturing and renewable energy sector development.
Semiconductor Manufacturing
Ultra-high-purity silicon derived from metallurgical silicon is utilized in integrated circuit production, electronic chip fabrication, and advanced semiconductor device manufacturing.
Refractory and Metallurgical Applications
Silicon contributes to oxidation resistance and high-temperature stability in refractory materials, ceramic products, and specialized metallurgical processes.

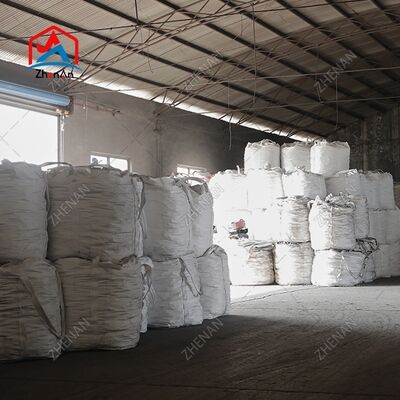

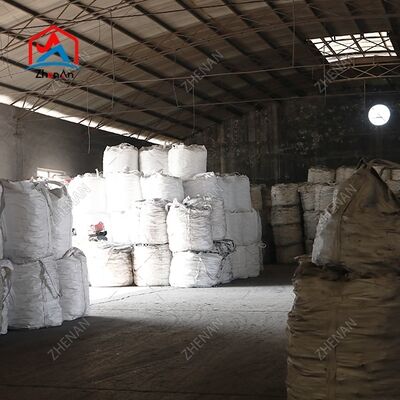

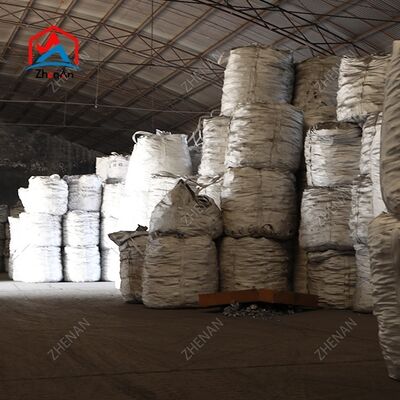

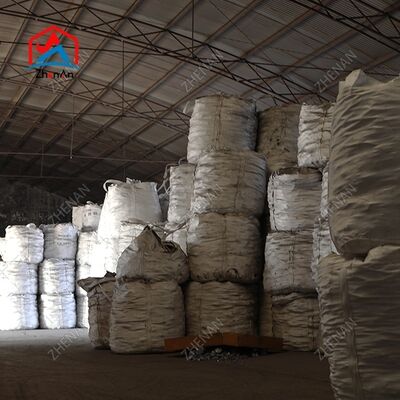

Packaging and Delivery Specifications
- Standard 1 MT Jumbo Bags
- Customized Packaging Available
- Lump, Granule, and Powder Forms
- Global Ocean Freight and Container Shipping
- COA, SGS, and Third-Party Inspection Available
ZhenAn Silicon Metal Advantages
- 30+ Years of Metallurgical Materials Manufacturing Experience
- Strict Chemical Composition Control
- Stable Supply of 3303, 2202, 1101, 441, and 553 Grades
- Customized Particle Sizes and Packaging
- Exported to More Than 50 Countries
- Professional Technical Support and Fast Response
Frequently Asked Questions
What do the numbers 3303, 2202, and 1101 mean?
These numerical designations represent maximum permissible impurity levels for iron, aluminum, and calcium elements. Lower numbers indicate reduced impurity content and elevated silicon purity.
Which silicon metal grade is optimal for aluminum alloy casting?
Silicon Metal 3303 and 2202 are extensively utilized in aluminum alloy production due to their optimal balance between purity standards and cost-effectiveness.
What is the silicon content of Silicon Metal 1101?
Silicon Metal 1101 typically contains exceeding 99.7% silicon content with minimal impurity levels.
Can Silicon Metal be utilized for solar panel manufacturing?
Yes. High-purity silicon metal constitutes the primary raw material for polysilicon production employed in photovoltaic solar cell manufacturing.
What particle sizes are available?
Standard sizes include 0-1mm, 1-3mm, 3-10mm, 10-50mm, and 10-100mm. Customized sizing is available upon request.
What distinguishes Silicon Metal from Ferrosilicon?
Silicon Metal contains significantly higher silicon purity and lower iron content, making it appropriate for aluminum, chemical, and semiconductor industries.
How is Silicon Metal manufactured?
Production involves quartz reduction with carbon materials in submerged arc furnaces operating at temperatures above 2,000°C.
Which industries utilize Silicon Metal 2202?
Aluminum alloy manufacturing, silicone chemical production, polysilicon fabrication, and high-performance industrial applications.
Is a Mill Test Certificate available?
Yes. Chemical analysis reports, Certificate of Analysis, and third-party inspection documentation can be provided.
How can I request a quotation?
Submit your required grade specifications, quantity requirements, destination port details, and particle size preferences to receive a customized quotation.
