Industrial Ferrovanadium FeV 78 Granules Metallic Grey For Cast Steel Nodularization And Grain Refinement

Large Image : Industrial Ferrovanadium FeV 78 Granules Metallic Grey For Cast Steel Nodularization And Grain Refinement

Product Details:

Place of Origin:	China
Brand Name:	ZHENAN
Certification:	ISO9001:2015
Model Number:	FeV

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	1MT big bag or as per customer request
Delivery Time:	7-10 work days after received the payment
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2000MT/per Month

Contact Now

Industrial Ferrovanadium FeV 78 Granules Metallic Grey For Cast Steel Nodularization And Grain Refinement

Description

Product Name:	FeV	Color:	Grey
Model:	40 50 60 75 80	Shape:	Block/ Lump/ Powder
Melting Point:	1887ºC	Boiling Point:	3337ºC
Highlight:	Ferrovanadium FeV 78 granules , Industrial Ferrovanadium for cast steel , Metallic grey Ferrovanadium grain refinement

Industrial Ferrovanadium FeV 78 Granules

Metallic Grey Alloy for Cast Steel Nodularization and Grain Refinement

Product Overview

Industrial ferrovanadium FeV 78, supplied as metallic grey granules, is a specialized FeV alloy engineered to optimize cast steel properties through nodularization and grain refinement. With approximately 78% vanadium content, it bridges the gap between mid-range grades (e.g., FeV50) and ultra-high-purity variants (e.g., FeV80), offering a balanced combination of performance and cost for demanding foundry applications.

Core Functions in Cast Steel Processing

Cast steel, used in components like gears, valves, and mining equipment, requires uniform microstructure and high mechanical strength. FeV 78 granules address two critical needs:

Nodularization: Promoting Spherical Graphite Formation

In ductile cast iron (a subset of cast steel), graphite shape dictates properties—flaky graphite causes brittleness, while spherical graphite (nodular) enhances toughness. FeV 78 acts as a nodularizer by:

Providing vanadium, which reacts with sulfur and oxygen in the melt to form stable compounds (e.g., VS, VO), reducing interfacial tension between graphite and the liquid metal
Encouraging graphite to nucleate as spheres rather than flakes, resulting in a matrix reinforced by uniformly distributed nodules

This transformation improves ductility, impact resistance, and fatigue life—essential for cast steel parts subjected to dynamic loads.

Grain Refinement: Controlling Austenite Growth

During solidification, cast steel tends to form coarse austenite grains, which weaken mechanical properties. FeV 78's vanadium atoms segregate to grain boundaries, pinning them and inhibiting growth. The result is a finer ferrite-pearlite or bainitic microstructure, which:

Increases yield strength and hardness
Enhances toughness and resistance to crack propagation

Advantages of the 78% Vanadium Grade

Balanced Potency: FeV 78 delivers stronger nodularizing and grain-refining effects than FeV50 (50% V) but at a lower cost than FeV80 (80% V)
Granule Form: The granular morphology (typically 1–5 mm) ensures rapid dissolution in the ladle, uniform distribution, and minimal dust generation
Low Impurities: Strict control over sulfur (<0.05%) and phosphorus (<0.04%) prevents harmful inclusions

Technical Specifications

Parameter	Details
Vanadium Content	76–80% (typical 78%)
Form	Metallic grey granules (1–5 mm)
Iron Content	~20–24%
Impurities	S ≤ 0.05%, P ≤ 0.04%, C ≤ 0.10%
Melting Point	~1550°C
Key Functions	Nodularization, grain refinement, carbide strengthening

Ferro Vanadium Composition

Grade	V	Al	P	Si	C
FeV40-A	38-45	1.5	0.09	2.00	0.60
FeV40-B	38-45	2.0	0.15	3.00	0.80
FeV50-A	48-55	1.5	0.07	2.00	0.40
FeV50-B	48-55	2.0	0.10	2.50	0.60
FeV60-A	58-65	1.5	0.06	2.00	0.40
FeV60-B	58-65	2.0	0.10	2.50	0.60
FeV80-A	78-82	1.5	0.05	1.50	0.15
FeV80-B	78-82	2.0	0.06	1.50	0.20

Applications in Cast Steel Production

Ductile Cast Iron: For automotive components (e.g., crankshafts, steering knuckles) and industrial machinery (e.g., gearboxes, couplings)
High-Strength Cast Steel: In mining tools, valve bodies, and hydraulic components
Alloy Cast Steel: To enhance hardenability and temper resistance in heat-treated castings

Product Images

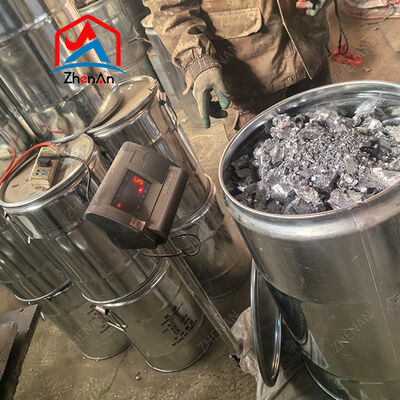

Industrial Ferrovanadium FeV 78 Lumps - Silver Grey Alloy Sample

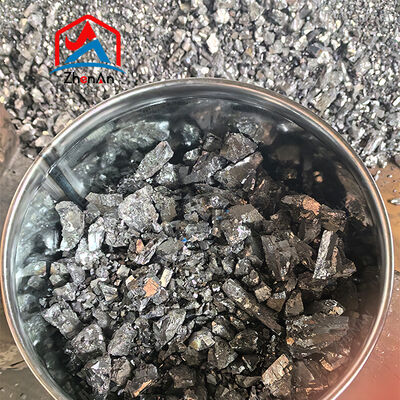

Close-up View of Ferrovanadium FeV 78 Irregular Lumps

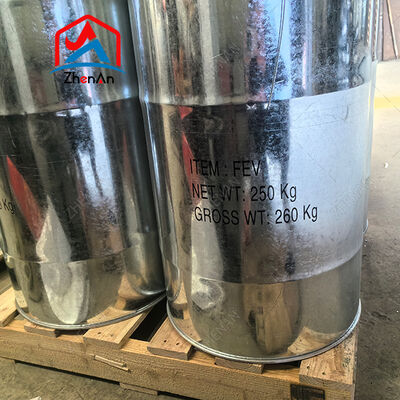

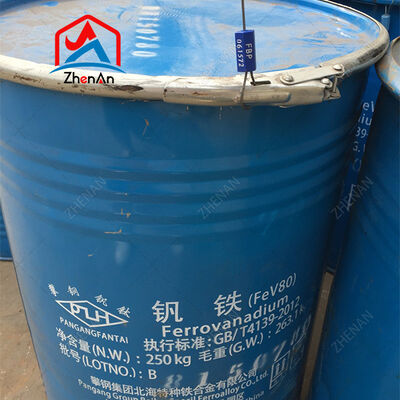

Packing & Delivery

Packing: 1 ton big bag, 20-25mt in 20' container

Ferro Silicon Magnesium Ferro Silicon Lump packaging - 1 ton big bags

Conclusion

Ferrovanadium's ability to impart excellent thermal stability makes it indispensable in heat-treatable alloy production. By forming stable carbides, refining grains, and strengthening the matrix, it enables steels to withstand extreme conditions while maintaining the mechanical properties required for modern engineering applications. As demand grows for lighter, stronger, and more durable materials, ferrovanadium will remain a key enabler of innovation in the steel industry.
