Mo80cu20 Thickness 0.25mm Thin Sheet Molybdenum Copper Alloy

I'm Online Chat Now

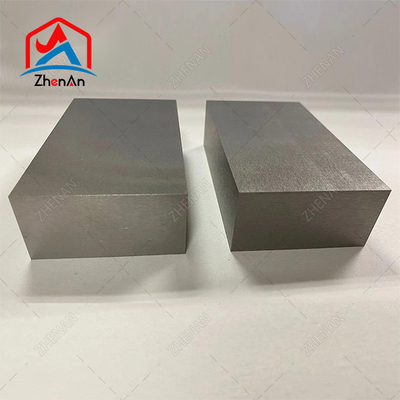

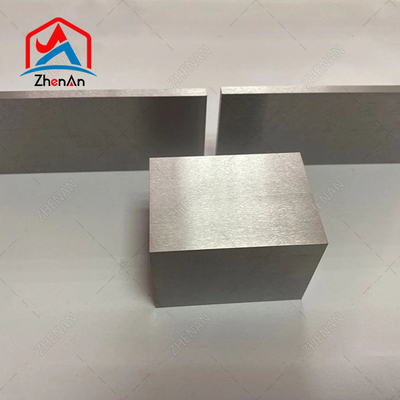

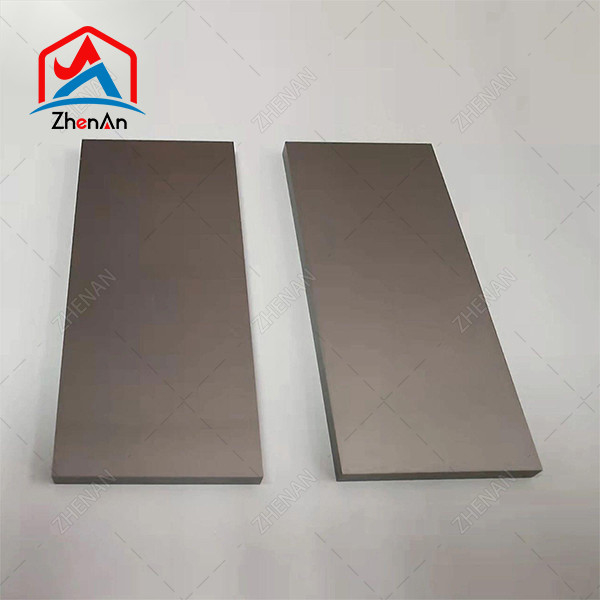

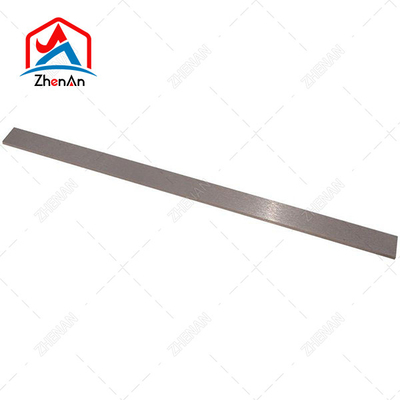

Mo80cu20 Thickness 0.25mm Thin Sheet Molybdenum Copper Alloy

Mo80cu20 Thickness 0.25mm Thin Sheet Molybdenum Copper Alloy
Mo80cu20 Thickness 0.25mm Thin Sheet Molybdenum Copper Alloy
Mo80cu20 Thickness 0.25mm Thin Sheet Molybdenum Copper Alloy Mo80cu20 Thickness 0.25mm Thin Sheet Molybdenum Copper Alloy Mo80cu20 Thickness 0.25mm Thin Sheet Molybdenum Copper Alloy Mo80cu20 Thickness 0.25mm Thin Sheet Molybdenum Copper Alloy Mo80cu20 Thickness 0.25mm Thin Sheet Molybdenum Copper Alloy

Large Image :  Mo80cu20 Thickness 0.25mm Thin Sheet Molybdenum Copper Alloy

Product Details:
Place of Origin: China
Brand Name: ZHENAN
Certification: ISO9001:2015
Model Number: Molybdenum copper alloy Plate Rod sheet Bar Foil wire tube
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1MT big bag or as per customer request
Delivery Time: 7-10 work days after received the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000MT/per Month

Mo80cu20 Thickness 0.25mm Thin Sheet Molybdenum Copper Alloy

Description
Product Composition: Molybdenum Copper Alloy Plate Rod Sheet Bar Foil Wire Tube Origin: China
Density: 10.2g/Cm³ Brand Name: ZhenAn
Material: Molybdenum
Highlight:

Molybdenum Copper Alloy Sheet

,

0.25mm Molybdenum Copper Alloy

,

Thin Sheet Molybdenum Copper Alloy

Mo80cu20 Thickness 0.25mm Thin Sheet Molybdenum Copper Alloy

The vacuum melting method is to put the pre-proportioned molybdenum and copper blocks into a vacuum melting furnace, and then evacuate the air in the furnace cavity through a vacuum pump, and then melt the alloy block into liquid through electric heating or electron beam heating. The vacuum melting method can prevent the alloy from being oxidized by air and producing impurities, so a higher purity molybdenum-copper alloy can be obtained.
During the smelting process, the composition control and temperature control of the alloy also need to be considered. By reasonably controlling the heating temperature and holding time, the uniformity and consistency of the alloy composition can be ensured. In addition, it is necessary to add an appropriate amount of flux and regulating elements to improve the fluidity and mechanical properties of the alloy.
In general, the smelting of molybdenum-copper alloy is a complex process, which requires strict control of the smelting temperature, time and process parameters to ensure that the composition and quality of the alloy meet the requirements. Only through strict smelting process and quality control can high-quality molybdenum-copper alloy products be produced to meet the needs of different industrial fields.

MoCu alloy physical Properties of Major Products

MaterialWt%
Molybdenum
Content
Wt%
Copper Content
g/
Density at 20ºC
W/M.K
Thermal conductivity at 25ºC
(/k)
Coefficient of thermal expansion at 20ºC
Mo85Cu15851Balance10160-1806.8
Mo80Cu20801Balance9.9170-1907.7
Mo70Cu30701Balance9.8180-2009.1
Mo60Cu40601Balance9.66210-25010.3
Mo50Cu50500.2Balance9.54230-27011.5





Mo80cu20 Thickness 0.25mm Thin Sheet Molybdenum Copper Alloy 0

Packaging & Shipping

In the process of product transportation, storage, sales and other circulation, in order to protect the product, convenient storage to promote sales, according to certain technical methods and the use of containers, materials and auxiliary objects attached to the decoration of the product. Product packaging is not only beneficial to ensure the safety and quality of special products, but also to protect the legitimate rights and interests of the storers, transporters, sellers and consumers.
Our company uses high quality, in accordance with the domestic packaging supervision of the shipping method, can also be customized according to your needs.

Mo80cu20 Thickness 0.25mm Thin Sheet Molybdenum Copper Alloy 1


What can we serve for you?

1. Sample can be offered with free.
2. We have full stock,and can deliver within short time.Manystyles for your choices.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality+Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
5. All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

FAQ:

Q: What is your delivery time?
A: Within 7 working days after receiving your balance payment.
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for many years. We can provide a variety of metal products.

Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.

Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
