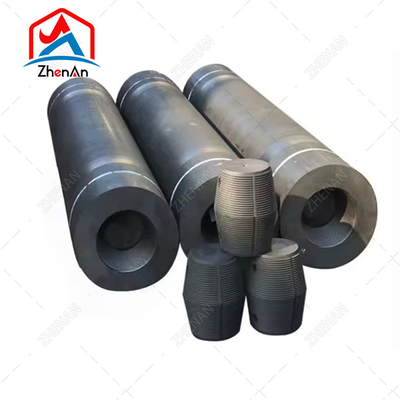

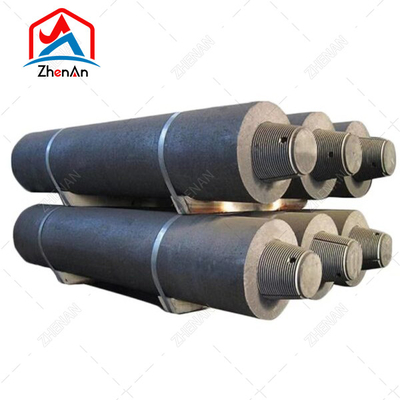

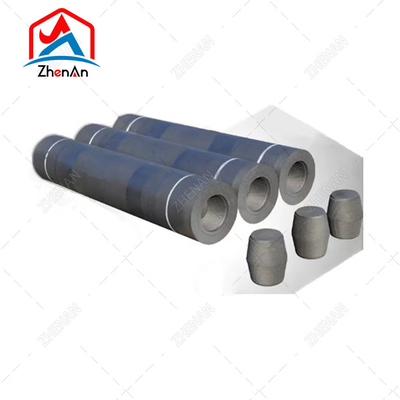

High Carbon UHP High Power Graphite Electrode 500 600 700mm 1.6 G/M³
Who are we?
ZhenAn has been in the metallurgical materials industry for 30 years. By integrating resources and optimizing the expert team, we have expanded our business to alloy, big bag and retail industries.
We have our own factories. By investing in some other metallurgical materials factories, we have strengthened our production and quality control position at a more favorable price.
(1) Ordinary power graphite electrode. Graphite electrodes with a current density lower than 17A/cm2 are allowed to be used. They are mainly used in ordinary power electric furnaces for steelmaking, silicon refining, yellow phosphorus refining, etc.
(2) Anti-oxidation coated graphite electrode. Graphite electrode with a layer of anti-oxidation protective layer coated on the surface forms a protective layer that is both conductive and resistant to high-temperature oxidation, reducing electrode consumption during steelmaking.
(3) High power graphite electrode. Graphite electrodes with a current density of 18 to 25A/cm2 are allowed to be used. They are mainly used in high power electric arc furnaces for steelmaking.
(4) Ultra-high power graphite electrode. Graphite electrodes with a current density greater than 25A/cm2 are allowed to be used. They are mainly used in ultra-high power steelmaking electric arc furnaces.
| Physical and Chemical Index of UHP |
|
Items
|
unit
|
Diameter: 300-600mm |
| Standard |
Test data |
| Electrode |
Nipple |
Electrode |
Nipple |
| Electrical resistance |
μΩm |
5.5-6.0 |
5.0 |
5.0-5.8 |
4.5 |
| Flexure strength |
Mpa |
10.5 |
16 |
14-16 |
18-20 |
| Modulus of elasticity |
GPa |
14 |
18 |
12 |
14 |
| Ash content |
% |
0.2 |
0.2 |
0.2 |
0.2 |
| Apparent density |
g/cm3 |
1.64-16.5 |
1.70-1.72 |
1.72-1.75 |
1.78 |
| Factor of expansion(100-600ºC) |
x10-6/ºC |
1.5 |
1.4 |
1.3 |
1.2 |
Packing & Delivery
REMARK: the above data is just on standard of YB/T, the actual product is big different from the above. For the actual, be free to contact us, please.
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
Company profile
ZhenAn International Co., Limited. is located in Anyang City, Henan Province, the hometown of Oracle. The company specializes in the research and development, production and sales, and international trade of graphite electrodes and carbon products. It has nearly 30 years of experience in graphite electrode production and research and development and independent intellectual property rights. It is a domestic professional production and research and development enterprise with excellent quality, complete varieties and multiple specifications. Its products enjoy a high reputation at home and abroad.
FAQ
Q:Do you accept sample order or trial order?
A: Yes, welcome to place a sample order or trial order.
Q: What is the payment terms?
A: Normally, we accept 30% deposit and the balance before shipment. Of course it is negotiated for some special orders.
Q:Can we use our own shipping agent?
A: Yes, you can. We had cooperated with many forwarders. If you need, we can recommend some forwarders for you to compare the price and services.
