Product Details:
|
Grade: | UHP (Ultra High Power), HP (High Power), RP (Regular Power), UHP, RP | Thermal Expansion: | 1.5, 1.1-1.4, ≤2.8, 2.3-2.1, 1.5 - 2.8 X10-6 / (100-600 ) |
---|---|---|---|
Apparent Density (g/cm³ ): | 1.58 - 1.76 G/cc, 1.6-1.9, 1.68-1.75g/cm3, 1.58-1.75, 1.55-1.69 G/cc | Resistance (μω.m): | 5.5, 4 - 9 Micro Ohm.m, 4.8-5.8μΩm, 5.5-6.5 Ohm, 6.0-9.5 |
Length: | 1600~2400mm, 1500mm-2700mm, 250 - 2400mm, 2700, 1800-2700 | Type: | Electrode Block, Electrode Powder, Electrode Bolt, Graphite Electrode With Nipples, Generator |
Highlight: | UHP Graphite Electrode,350mm Graphite Electrode,Nipple Graphite Electrode |
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
What is the application value of ultra-high power graphite electrodes in the manufacturing industry?
Ultra-high power graphite electrode is an important material widely used in the manufacturing industry. It has the advantages of high thermal stability, strong conductivity, and good corrosion resistance. It is widely used in electrolytic aluminum, chlor-alkali, metallurgy, glass and other fields. The main application value is as follows:
1. In electrolytic aluminum production, ultra-high power graphite electrode, as the main conductive material of electric furnace, can effectively conduct current and heat, improve the production efficiency and quality of electrolytic aluminum, and reduce production costs.
2. In chlor-alkali production, ultra-high power graphite electrodes are widely used in chlor-alkali electrolytic cells, which can improve electrolysis efficiency, extend the life of electrolytic cells, and reduce electrolysis energy consumption and environmental pollution.
3. In the metallurgical industry, ultra-high power graphite electrodes are used in steelmaking, ironmaking and other processes, which can increase smelting temperature and pressure, promote metal smelting and smelting reactions, and improve the output and quality of steelmaking furnaces.
4. In glass manufacturing, ultra-high power graphite electrodes are used in glass melting furnaces, which can increase the melting temperature and speed, promote glass melting and forming, and improve the quality and output of glass products.
Graphite Electrode Current Carrying Capacity
Nomina diameter | RP | HP | UHP | ||||
Current Carrying Capacity | Current Density | Current Carrying Capacity | Current Density | Current Carrying Capacity | Current Density | ||
in | mm | A | A/cm2 | A | A/cm2 | A | A/cm2 |
12 | 300 | 10000-13000 | 14-18 | 13000-17400 | 17-24 | 15000-22000 | 20-30 |
14 | 350 | 13500-18000 | 14-18 | 17400-24000 | 17-24 | 20000-30000 | 20-30 |
16 | 400 | 18000-23500 | 14-18 | 21000-31000 | 16-24 | 25000-40000 | 19-30 |
18 | 450 | 22000-27000 | 13-17 | 25000-40000 | 15-24 | 32000-45000 | 19-27 |
20 | 500 | 25000-32000 | 13-16 | 30000-48000 | 15-24 | 38000-55000 | 18-27 |
22 | 550 | 32000-40000 | 13-16 | 35000-55000 | 14-22 | 42000-64000 | 17-26 |
24 | 600 | 35000-41000 | 13-15 | 41000-61000 | 14-21 | 50000-73000 | 17-25 |
28 | 700 | 39000-48000 | 10-12 | 55000-82000 | 14-21 | 67000-99000 | 17-25 |
32 | 800 | 43000-54000 | 8-10 | / | / | / | / |

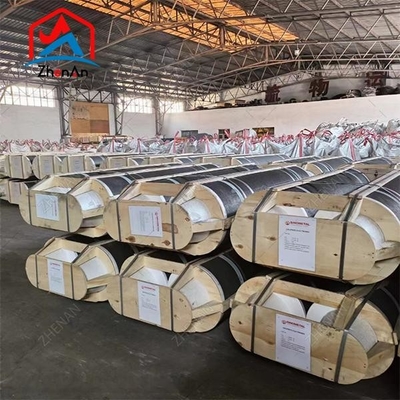

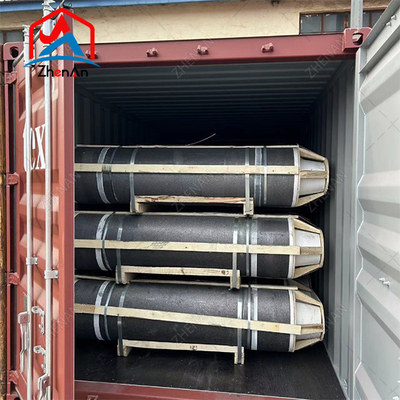

Packing & Delivery
REMARK: the above data is just on standard of YB/T, the actual product is big different from the above. For the actual, be free to contact us, please.
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
Company profile
ZhenAn International Co., Limited. is located in Anyang City, Henan Province, the hometown of Oracle. The company specializes in the research and development, production and sales, and international trade of graphite electrodes and carbon products. It has nearly 30 years of experience in graphite electrode production and research and development and independent intellectual property rights. It is a domestic professional production and research and development enterprise with excellent quality, complete varieties and multiple specifications. Its products enjoy a high reputation at home and abroad.
FAQ
Q: Can you offer free samples?
A: Usually we can offer samples, if the sample is expensive, clients will pay the basic cost of the sample. We do not pay the freight for the samples. Before we received the first order, please afford the express fee. We will return the sample cost back to you within your first order.
Q: Do you accept OEM or ODM orders?
A: Sure, we do.
Q: How about your delivery time?
A: Usually our manufacture time is 7-10 days. And meanwhile it takes 7-30 days to apply the Import and export license for dual-useitems and technologies, so the delivery time is 7 to 30 days after payment.
Q: What is your MOQ?
A: There is no limit for MOQ, 1 ton is also available.
Q: What is the package like?
A: as customer's requested.
