Product Details:
|
Grade: | UHP (Ultra High Power), HP (High Power), RP (Regular Power), UHP, RP | Thermal Expansion: | 1.5, 1.1-1.4, ≤2.8, 2.3-2.1, 1.5 - 2.8 X10-6 / (100-600 ) |
---|---|---|---|
Apparent Density (g/cm³ ): | 1.58 - 1.76 G/cc, 1.6-1.9, 1.68-1.75g/cm3, 1.58-1.75, 1.55-1.69 G/cc | Resistance (μω.m): | 5.5, 4 - 9 Micro Ohm.m, 4.8-5.8μΩm, 5.5-6.5 Ohm, 6.0-9.5 |
Length: | 1600~2400mm, 1500mm-2700mm, 250 - 2400mm, 2700, 1800-2700 | Type: | Electrode Block, Electrode Powder, Electrode Bolt, Graphite Electrode With Nipples, Generator |
Highlight: | Uhp Graphite Electrodes,Good Mechanical Strength Graphite Electrodes,Arc Furnace Graphite Electrodes |
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
What is the power test of ultra-high power graphite electrode?
1. Arc furnace test: By heating the graphite electrode in an arc furnace, its stability and conductivity under high temperature and high pressure conditions can be observed, and its power performance can be verified.
2. Electrolyzer test: By placing the graphite electrode in the electrolyzer, its effect during the electrolysis process can be observed to verify its power performance.
In general, verifying the performance and power of ultra-high power graphite electrodes requires comprehensive consideration of its physical properties, heat resistance and power performance, and comprehensive evaluation of its performance through physical properties testing, heat resistance testing and power testing. Only through strict verification testing can we ensure that ultra-high power graphite electrodes can work stably and reliably in actual production, and improve production efficiency and product quality.
Graphite Electrode Current Carrying Capacity
Nomina diameter | RP | HP | UHP | ||||
Current Carrying Capacity | Current Density | Current Carrying Capacity | Current Density | Current Carrying Capacity | Current Density | ||
in | mm | A | A/cm2 | A | A/cm2 | A | A/cm2 |
12 | 300 | 10000-13000 | 14-18 | 13000-17400 | 17-24 | 15000-22000 | 20-30 |
14 | 350 | 13500-18000 | 14-18 | 17400-24000 | 17-24 | 20000-30000 | 20-30 |
16 | 400 | 18000-23500 | 14-18 | 21000-31000 | 16-24 | 25000-40000 | 19-30 |
18 | 450 | 22000-27000 | 13-17 | 25000-40000 | 15-24 | 32000-45000 | 19-27 |
20 | 500 | 25000-32000 | 13-16 | 30000-48000 | 15-24 | 38000-55000 | 18-27 |
22 | 550 | 32000-40000 | 13-16 | 35000-55000 | 14-22 | 42000-64000 | 17-26 |
24 | 600 | 35000-41000 | 13-15 | 41000-61000 | 14-21 | 50000-73000 | 17-25 |
28 | 700 | 39000-48000 | 10-12 | 55000-82000 | 14-21 | 67000-99000 | 17-25 |
32 | 800 | 43000-54000 | 8-10 | / | / | / | / |

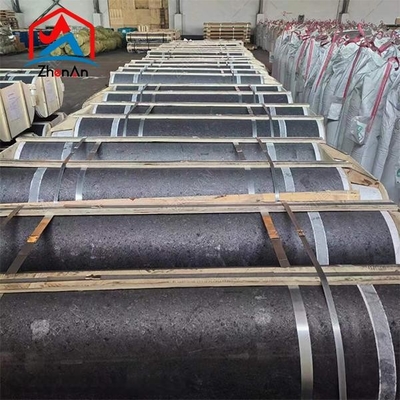

Packing & Delivery
REMARK: the above data is just on standard of YB/T, the actual product is big different from the above. For the actual, be free to contact us, please.
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
Company profile
ZhenAn International Co., Limited. is located in Anyang City, Henan Province, the hometown of Oracle. The company specializes in the research and development, production and sales, and international trade of graphite electrodes and carbon products. It has nearly 30 years of experience in graphite electrode production and research and development and independent intellectual property rights. It is a domestic professional production and research and development enterprise with excellent quality, complete varieties and multiple specifications. Its products enjoy a high reputation at home and abroad.
FAQ
Q: Can you offer free samples?
A: Usually we can offer samples, if the sample is expensive, clients will pay the basic cost of the sample. We do not pay the freight for the samples. Before we received the first order, please afford the express fee. We will return the sample cost back to you within your first order.
Q: Do you accept OEM or ODM orders?
A: Sure, we do.
Q: How about your delivery time?
A: Usually our manufacture time is 7-10 days. And meanwhile it takes 7-30 days to apply the Import and export license for dual-useitems and technologies, so the delivery time is 7 to 30 days after payment.
Q: What is your MOQ?
A: There is no limit for MOQ, 1 ton is also available.
Q: What is the package like?
A: as customer's requested.
