Product Details:
|
| Grade: | UHP (Ultra High Power), HP (High Power), RP (Regular Power), UHP, RP | Thermal Expansion: | 1.5, 1.1-1.4, ≤2.8, 2.3-2.1, 1.5 - 2.8 X10-6 / (100-600 ) |
|---|---|---|---|
| Apparent Density (g/cm³ ): | 1.58 - 1.76 G/cc, 1.6-1.9, 1.68-1.75g/cm3, 1.58-1.75, 1.55-1.69 G/cc | Resistance (μω.m): | 5.5, 4 - 9 Micro Ohm.m, 4.8-5.8μΩm, 5.5-6.5 Ohm, 6.0-9.5 |
| Length: | 1600~2400mm, 1500mm-2700mm, 250 - 2400mm, 2700, 1800-2700 | Type: | Electrode Block, Electrode Powder, Electrode Bolt, Graphite Electrode With Nipples, Generator |
| Highlight: | Eaf Foundry Carbon Graphite Electrode,Electric Arc Furnace Carbon Graphite Electrode,Ladle Furnace Carbon Graphite Electrode |
||
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
What is the physical performance test of ultra-high power graphite electrodes?
1. Density test: The density of ultra-high power graphite electrodes is one of its important physical properties, which affects its thermal conductivity and electrical conductivity. Density testing can be carried out by weighing method or immersion method.
2. Conductivity test: Conductivity is one of the key properties of graphite electrodes, which directly affects the working efficiency of its electric furnace or electrolytic cell. Conductivity test can be carried out by resistivity tester and other equipment.
3. Thermal expansion coefficient test: Graphite electrodes will be affected by thermal expansion and contraction at high temperature, so its thermal expansion coefficient is also one of the important physical performance indicators. Thermal expansion coefficient test can be carried out by thermal expansion instrument and other equipment.
Graphite Electrode Current Carrying Capacity
| Nomina diameter | RP | HP | UHP | ||||
| Current Carrying Capacity | Current Density | Current Carrying Capacity | Current Density | Current Carrying Capacity | Current Density | ||
| in | mm | A | A/cm2 | A | A/cm2 | A | A/cm2 |
| 12 | 300 | 10000-13000 | 14-18 | 13000-17400 | 17-24 | 15000-22000 | 20-30 |
| 14 | 350 | 13500-18000 | 14-18 | 17400-24000 | 17-24 | 20000-30000 | 20-30 |
| 16 | 400 | 18000-23500 | 14-18 | 21000-31000 | 16-24 | 25000-40000 | 19-30 |
| 18 | 450 | 22000-27000 | 13-17 | 25000-40000 | 15-24 | 32000-45000 | 19-27 |
| 20 | 500 | 25000-32000 | 13-16 | 30000-48000 | 15-24 | 38000-55000 | 18-27 |
| 22 | 550 | 32000-40000 | 13-16 | 35000-55000 | 14-22 | 42000-64000 | 17-26 |
| 24 | 600 | 35000-41000 | 13-15 | 41000-61000 | 14-21 | 50000-73000 | 17-25 |
| 28 | 700 | 39000-48000 | 10-12 | 55000-82000 | 14-21 | 67000-99000 | 17-25 |
| 32 | 800 | 43000-54000 | 8-10 | / | / | / | / |

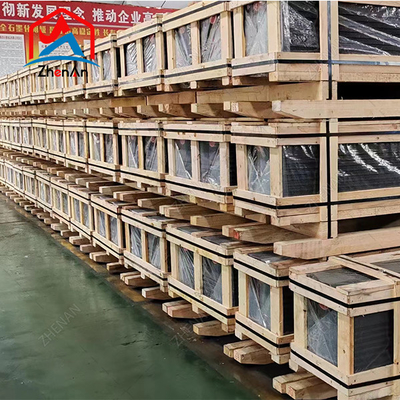

Packing & Delivery
REMARK: the above data is just on standard of YB/T, the actual product is big different from the above. For the actual, be free to contact us, please.
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
Company profile
ZhenAn International Co., Limited. is located in Anyang City, Henan Province, the hometown of Oracle. The company specializes in the research and development, production and sales, and international trade of graphite electrodes and carbon products. It has nearly 30 years of experience in graphite electrode production and research and development and independent intellectual property rights. It is a domestic professional production and research and development enterprise with excellent quality, complete varieties and multiple specifications. Its products enjoy a high reputation at home and abroad.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer with our own factory, with an annual output of 550,000 tons of various refractory materials. We not only provide high quality products with the best price, but also the best pre-sale and after-sale service.
Q: What kind of products can you provide?
A: We can supply all kinds of refractory products, such as: refractory bricks, high alumina bricks, clay bricks, magnesium-carbon bricks, silicon carbide bricks, castables, graphite products, ceramic fiber products and so on.
Q: What are your main products?
A: Our company mainly produces graphite related products. We can provide customization according to the specific needs of customers.
Q: Are you a factory or trading company?
A: We’re factory and has the independent right of export and import.
