Product Details:
|
Grade: | UHP (Ultra High Power), HP (High Power), RP (Regular Power), UHP, RP | Thermal Expansion: | 1.5, 1.1-1.4, ≤2.8, 2.3-2.1, 1.5 - 2.8 X10-6 / (100-600 ) |
---|---|---|---|
Apparent Density (g/cm³ ): | 1.58 - 1.76 G/cc, 1.6-1.9, 1.68-1.75g/cm3, 1.58-1.75, 1.55-1.69 G/cc | Resistance (μω.m): | 5.5, 4 - 9 Micro Ohm.m, 4.8-5.8μΩm, 5.5-6.5 Ohm, 6.0-9.5 |

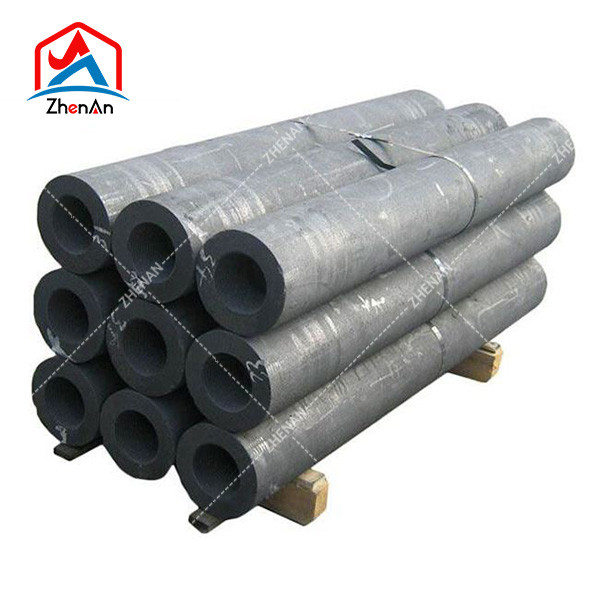

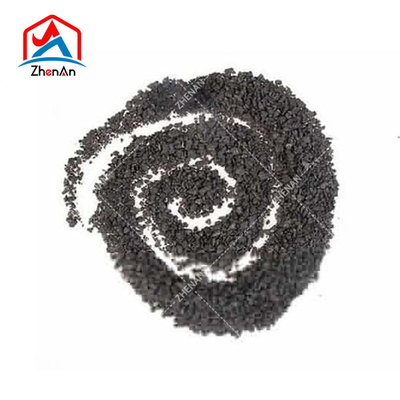

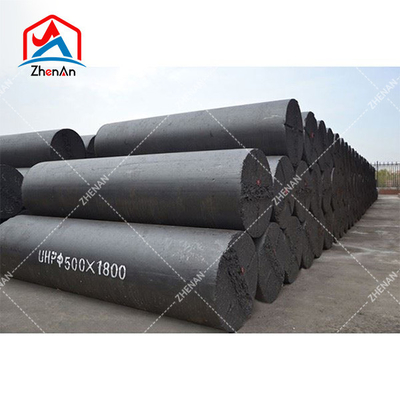

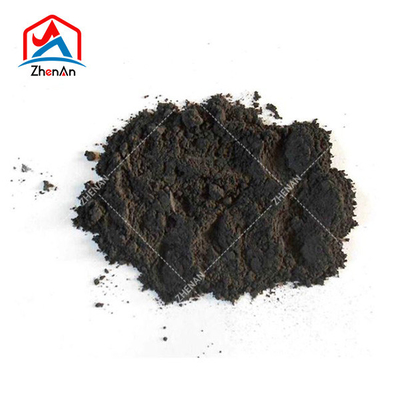

Length: | 1600~2400mm, 1500mm-2700mm, 250 - 2400mm, 2700, 1800-2700 | Type: | Electrode Block, Electrode Powder, Electrode Bolt, Graphite Electrode With Nipples, Generator |
Highlight: | 200 Uhp Graphite Electrode,EAF Graphite Electrode,LF Graphite Electrode |
1. We provide the best suitable products and solutions according to customer 's requirements.
2. We provide test report of the whole production process.
3. We provide safe, fast, preferential price transport scheme for customer.
4. We provide 24 hours after-sale service no matter when you contact us.
In addition, power increase may cause an increase in toxic waste generated during electrolysis, which will have a negative impact on the environment. Some electrolysis processes will produce harmful gases and waste liquids such as chlorine, fluoride, and cyanide. If they cannot be effectively treated and recycled, they will threaten the environment and human health. Power increase may aggravate these problems and challenge environmental friendliness.
In summary, the power increase of graphite electrodes may have a certain impact on environmental friendliness. In order to solve this problem, we should take some measures. First, it can promote the research and development and application of green preparation technology for graphite electrodes, reduce carbon dioxide emissions and resource consumption. Secondly, it can optimize the electrolysis process and reduce the generation and emission of hazardous waste. In addition, the recycling and environmental governance of waste graphite electrodes can be strengthened to reduce the negative impact on the environment.
In general, the power increase of graphite electrodes may have a certain impact on environmental friendliness, but through technological innovation and management measures, we can reduce these impacts, achieve sustainable development of graphite electrodes, and promote the realization of environmental friendliness. We should be aware of the importance of environmental protection and contribute our own strength to achieve sustainable development.
Graphite Electrode Current Carrying Capacity
Nomina diameter | RP | HP | UHP | ||||
Current Carrying Capacity | Current Density | Current Carrying Capacity | Current Density | Current Carrying Capacity | Current Density | ||
in | mm | A | A/cm2 | A | A/cm2 | A | A/cm2 |
12 | 300 | 10000-13000 | 14-18 | 13000-17400 | 17-24 | 15000-22000 | 20-30 |
14 | 350 | 13500-18000 | 14-18 | 17400-24000 | 17-24 | 20000-30000 | 20-30 |
16 | 400 | 18000-23500 | 14-18 | 21000-31000 | 16-24 | 25000-40000 | 19-30 |
18 | 450 | 22000-27000 | 13-17 | 25000-40000 | 15-24 | 32000-45000 | 19-27 |
20 | 500 | 25000-32000 | 13-16 | 30000-48000 | 15-24 | 38000-55000 | 18-27 |
22 | 550 | 32000-40000 | 13-16 | 35000-55000 | 14-22 | 42000-64000 | 17-26 |
24 | 600 | 35000-41000 | 13-15 | 41000-61000 | 14-21 | 50000-73000 | 17-25 |
28 | 700 | 39000-48000 | 10-12 | 55000-82000 | 14-21 | 67000-99000 | 17-25 |
32 | 800 | 43000-54000 | 8-10 | / | / | / | / |
Packing & Delivery
REMARK: the above data is just on standard of YB/T, the actual product is big different from the above. For the actual, be free to contact us, please.
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
Company profile
ZhenAn International Co., Limited. is located in Anyang City, Henan Province, the hometown of Oracle. The company specializes in the research and development, production and sales, and international trade of graphite electrodes and carbon products. It has nearly 30 years of experience in graphite electrode production and research and development and independent intellectual property rights. It is a domestic professional production and research and development enterprise with excellent quality, complete varieties and multiple specifications. Its products enjoy a high reputation at home and abroad.
RFQ
Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer with our own factory, with an annual output of 550,000 tons of various refractory materials. We not only provide high quality products with the best price, but also the best pre-sale and after-sale service.
Q: What kind of products can you provide?
A: We can supply all kinds of refractory products, such as: refractory bricks, high alumina bricks, clay bricks, magnesium-carbon bricks, silicon carbide bricks, castables, graphite products, ceramic fiber products and so on.
Q: What are your main products?
A: Our company mainly produces graphite related products. We can provide customization according to the specific needs of customers.
Contact Person: Mr. xie
