Home ProductsGraphite Electrode

Dia 75mm-700mm L1800-2700mm UHP HP RP graphite electrode With 4tpi 4tpil Nipple For Eaf Lf

I'm Online Chat Now

Dia 75mm-700mm L1800-2700mm UHP HP RP graphite electrode With 4tpi 4tpil Nipple For Eaf Lf

Dia 75mm-700mm L1800-2700mm UHP HP RP graphite electrode With 4tpi 4tpil Nipple For Eaf Lf
Dia 75mm-700mm L1800-2700mm UHP HP RP graphite electrode With 4tpi 4tpil Nipple For Eaf Lf
Dia 75mm-700mm L1800-2700mm UHP HP RP graphite electrode With 4tpi 4tpil Nipple For Eaf Lf Dia 75mm-700mm L1800-2700mm UHP HP RP graphite electrode With 4tpi 4tpil Nipple For Eaf Lf Dia 75mm-700mm L1800-2700mm UHP HP RP graphite electrode With 4tpi 4tpil Nipple For Eaf Lf Dia 75mm-700mm L1800-2700mm UHP HP RP graphite electrode With 4tpi 4tpil Nipple For Eaf Lf Dia 75mm-700mm L1800-2700mm UHP HP RP graphite electrode With 4tpi 4tpil Nipple For Eaf Lf

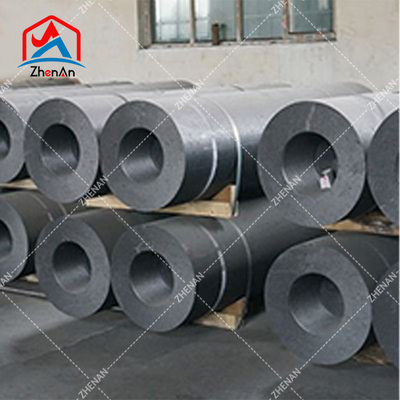

Large Image :  Dia 75mm-700mm L1800-2700mm UHP HP RP graphite electrode With 4tpi 4tpil Nipple For Eaf Lf

Product Details:
Place of Origin: China
Brand Name: ZHENAN
Certification: ISO9001
Model Number: RP/HP/UHP Graphite Electrodes
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1MT big bag or as per customer request
Delivery Time: 5-10 work days after received the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000MT/per Month

Dia 75mm-700mm L1800-2700mm UHP HP RP graphite electrode With 4tpi 4tpil Nipple For Eaf Lf

Description
Grade: UHP (Ultra High Power), HP (High Power), RP (Regular Power), UHP, RP Thermal Expansion: 1.5, 1.1-1.4, ≤2.8, 2.3-2.1, 1.5 - 2.8 X10-6 / (100-600 )
Apparent Density (g/cm³ ): 1.58 - 1.76 G/cc, 1.6-1.9, 1.68-1.75g/cm3, 1.58-1.75, 1.55-1.69 G/cc Resistance (μω.m): 5.5, 4 - 9 Micro Ohm.m, 4.8-5.8μΩm, 5.5-6.5 Ohm, 6.0-9.5
Length: 1600~2400mm, 1500mm-2700mm, 250 - 2400mm, 2700, 1800-2700 Type: Electrode Block, Electrode Powder, Electrode Bolt, Graphite Electrode With Nipples, Generator
Highlight:

75mm-700mm graphite electrode

,

4tpi graphite electrode

,

Eaf Lf graphite electrode

Dia 75mm-700mm L1800-2700mm UHP HP RP Electrodo De Grafito Graphite Electrode with 4tpi 4tpil Nipple for Eaf Lf



Why Choose Us


We are a forerunner in graphite electrode industry...This is our time.

We are located in Datong city, near Taiyuan, Ulanqab, the bases of graphite electrode industry.

We get strong support from Datong city government...

We are listed company, first-class quanlity is our brand...

We want to expand market, and devote ourselves to producing 700mm graphite electrodes, which will step into trial stage.

Our mission is serving global steel industry, and improving the quliaty of people lives.



Cycle management is an important guarantee for ensuring the cycle life of the battery. Graphite electrodes are susceptible to capacity decay, frost effect and passivation during the battery cycle, resulting in a decrease in battery performance and cycle life. Therefore, establishing an effective cycle management system, monitoring and analyzing the electrochemical behavior and performance changes of the battery, and timely adjusting the battery working conditions and charging and discharging strategies can extend the cycle life of the battery and improve its stability.

In summary, the surface modification, structural optimization and cycle management of graphite electrodes can effectively improve the cycle life and stability of the battery. In the future, with the continuous development of new materials and processes, the performance and cycle life of graphite electrodes will be further improved, bringing more innovation and development opportunities to the fields of battery applications and energy storage.

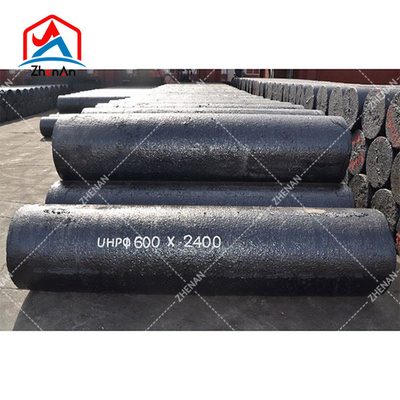

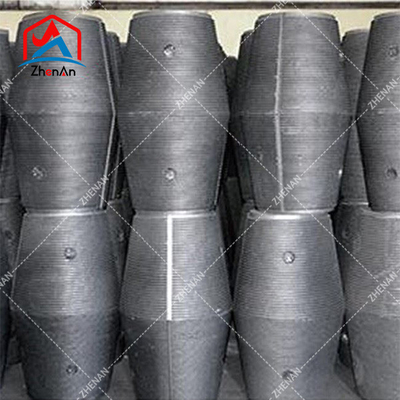

Dia 75mm-700mm L1800-2700mm UHP HP RP graphite electrode With 4tpi 4tpil Nipple For Eaf Lf 0Dia 75mm-700mm L1800-2700mm UHP HP RP graphite electrode With 4tpi 4tpil Nipple For Eaf Lf 1



Graphite Electrode Current Carrying Capacity




Nomina diameter RP HP UHP
Current Carrying Capacity Current Density Current Carrying Capacity Current Density Current Carrying Capacity Current Density
in mm A A/cm2 A A/cm2 A A/cm2
12 300 10000-13000 14-18 13000-17400 17-24 15000-22000 20-30
14 350 13500-18000 14-18 17400-24000 17-24 20000-30000 20-30
16 400 18000-23500 14-18 21000-31000 16-24 25000-40000 19-30
18 450 22000-27000 13-17 25000-40000 15-24 32000-45000 19-27
20 500 25000-32000 13-16 30000-48000 15-24 38000-55000 18-27
22 550 32000-40000 13-16 35000-55000 14-22 42000-64000 17-26
24 600 35000-41000 13-15 41000-61000 14-21 50000-73000 17-25
28 700 39000-48000 10-12 55000-82000 14-21 67000-99000 17-25
32 800 43000-54000 8-10 / / / /

Packing & Delivery


REMARK: the above data is just on standard of YB/T, the actual product is big different from the above. For the actual, be free to contact us, please.
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!

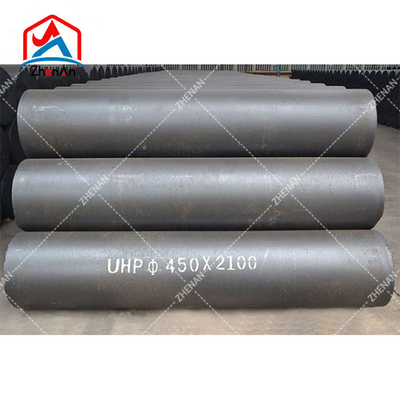

Dia 75mm-700mm L1800-2700mm UHP HP RP graphite electrode With 4tpi 4tpil Nipple For Eaf Lf 2
Company profile


ZhenAn International Co., Limited. is located in Anyang City, Henan Province, the hometown of Oracle. The company specializes in the research and development, production and sales, and international trade of graphite electrodes and carbon products. It has nearly 30 years of experience in graphite electrode production and research and development and independent intellectual property rights. It is a domestic professional production and research and development enterprise with excellent quality, complete varieties and multiple specifications. Its products enjoy a high reputation at home and abroad.


RFQ


Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.



Q: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.



Q: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.



Q: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc



Q: Are you a manufacturer or a trading company?
A: We are a manufacturer with our own factory, with an annual output of 550,000 tons of various refractory materials. We not only provide high quality products with the best price, but also the best pre-sale and after-sale service.



Q: What kind of products can you provide?
A: We can supply all kinds of refractory products, such as: refractory bricks, high alumina bricks, clay bricks, magnesium-carbon bricks, silicon carbide bricks, castables, graphite products, ceramic fiber products and so on.



Q: What are your main products?
A: Our company mainly produces graphite related products. We can provide customization according to the specific needs of customers.
