Product Details:
|
Grade: | UHP (Ultra High Power), HP (High Power), RP (Regular Power), UHP, RP | Thermal Expansion: | 1.5, 1.1-1.4, ≤2.8, 2.3-2.1, 1.5 - 2.8 X10-6 / (100-600 ) |
---|---|---|---|
Apparent Density (g/cm³ ): | 1.58 - 1.76 G/cc, 1.6-1.9, 1.68-1.75g/cm3, 1.58-1.75, 1.55-1.69 G/cc | Resistance (μω.m): | 5.5, 4 - 9 Micro Ohm.m, 4.8-5.8μΩm, 5.5-6.5 Ohm, 6.0-9.5 |
Length: | 1600~2400mm, 1500mm-2700mm, 250 - 2400mm, 2700, 1800-2700 | Type: | Electrode Block, Electrode Powder, Electrode Bolt, Graphite Electrode With Nipples, Generator |
Highlight: | Steel Making Graphite Electrodes,300mm Graphite Electrodes,200mm graphite electrodes for steel making |
1. We provide the best suitable products and solutions according to customer 's requirements.
2. We provide test report of the whole production process.
3. We provide safe, fast, preferential price transport scheme for customer.
4. We provide 24 hours after-sale service no matter when you contact us.

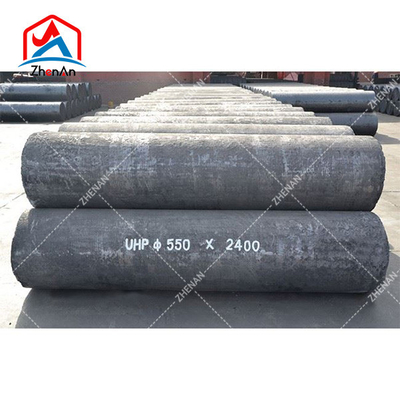

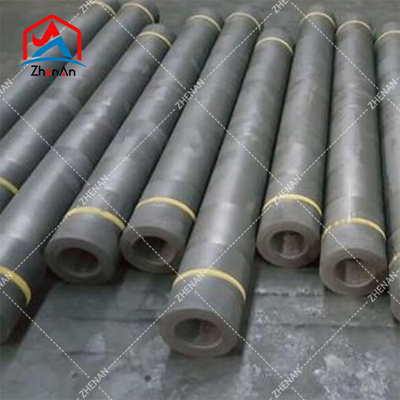

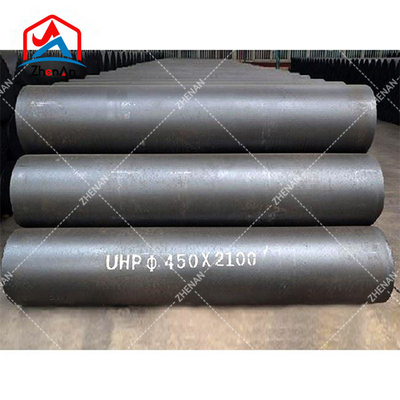

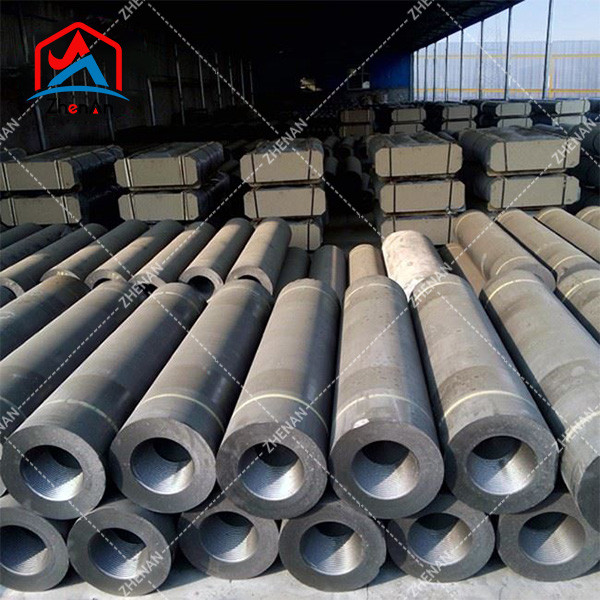

Ultra-high power graphite electrodes are an important material used for arc furnace smelting. They have the advantages of anti-oxidation, good electrical conductivity and stable mechanical properties. They are widely used in steel, non-ferrous metals, silicon and other industries. With the widespread application of electric arc furnaces in the field of smelting, the market for ultra-high power graphite electrodes is also expanding.
First, with the rapid development of the global economy, the demand for industries such as steel and non-ferrous metals is growing, which directly drives the growth of the ultra-high power graphite electrode market. Especially in Asia, the steel production in countries such as China and India continues to increase, and the demand for ultra-high power graphite electrodes is also increasing.
Secondly, environmental protection has become a global hot issue and has attracted more and more attention from the industry. Traditional industrial production methods have a large environmental pollution problem, so more and more companies are beginning to use clean production technologies such as electric arc furnaces. Ultra-high power graphite electrodes happen to be an important part of electric arc furnaces, and their market demand will also increase accordingly.
In addition, the continuous advancement of technology has also promoted the expansion of the ultra-high power graphite electrode market. With the continuous improvement and improvement of electric furnace technology, the requirements for material performance are getting higher and higher. As a key component of electric arc furnaces, the performance of ultra-high power graphite electrodes has also attracted more and more attention.
Graphite Electrode Current Carrying Capacity
Nomina diameter | RP | HP | UHP | ||||
Current Carrying Capacity | Current Density | Current Carrying Capacity | Current Density | Current Carrying Capacity | Current Density | ||
in | mm | A | A/cm2 | A | A/cm2 | A | A/cm2 |
12 | 300 | 10000-13000 | 14-18 | 13000-17400 | 17-24 | 15000-22000 | 20-30 |
14 | 350 | 13500-18000 | 14-18 | 17400-24000 | 17-24 | 20000-30000 | 20-30 |
16 | 400 | 18000-23500 | 14-18 | 21000-31000 | 16-24 | 25000-40000 | 19-30 |
18 | 450 | 22000-27000 | 13-17 | 25000-40000 | 15-24 | 32000-45000 | 19-27 |
20 | 500 | 25000-32000 | 13-16 | 30000-48000 | 15-24 | 38000-55000 | 18-27 |
22 | 550 | 32000-40000 | 13-16 | 35000-55000 | 14-22 | 42000-64000 | 17-26 |
24 | 600 | 35000-41000 | 13-15 | 41000-61000 | 14-21 | 50000-73000 | 17-25 |
28 | 700 | 39000-48000 | 10-12 | 55000-82000 | 14-21 | 67000-99000 | 17-25 |
32 | 800 | 43000-54000 | 8-10 | / | / | / | / |
Packing & Delivery
REMARK: the above data is just on standard of YB/T, the actual product is big different from the above. For the actual, be free to contact us, please.
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
Company profile
ZhenAn International Co., Limited. is located in Anyang City, Henan Province, the hometown of Oracle. The company specializes in the research and development, production and sales, and international trade of graphite electrodes and carbon products. It has nearly 30 years of experience in graphite electrode production and research and development and independent intellectual property rights. It is a domestic professional production and research and development enterprise with excellent quality, complete varieties and multiple specifications. Its products enjoy a high reputation at home and abroad.
RFQ
Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer with our own factory, with an annual output of 550,000 tons of various refractory materials. We not only provide high quality products with the best price, but also the best pre-sale and after-sale service.
Q: What kind of products can you provide?
A: We can supply all kinds of refractory products, such as: refractory bricks, high alumina bricks, clay bricks, magnesium-carbon bricks, silicon carbide bricks, castables, graphite products, ceramic fiber products and so on.
Q: What are your main products?
A: Our company mainly produces graphite related products. We can provide customization according to the specific needs of customers.
