Product Details:
|
Grade: | UHP (Ultra High Power), HP (High Power), RP (Regular Power), UHP, RP | Thermal Expansion: | 1.5, 1.1-1.4, ≤2.8, 2.3-2.1, 1.5 - 2.8 X10-6 / (100-600 ) |
---|---|---|---|
Apparent Density (g/cm³ ): | 1.58 - 1.76 G/cc, 1.6-1.9, 1.68-1.75g/cm3, 1.58-1.75, 1.55-1.69 G/cc | Resistance (μω.m): | 5.5, 4 - 9 Micro Ohm.m, 4.8-5.8μΩm, 5.5-6.5 Ohm, 6.0-9.5 |
Length: | 1600~2400mm, 1500mm-2700mm, 250 - 2400mm, 2700, 1800-2700 | Type: | Electrode Block, Electrode Powder, Electrode Bolt, Graphite Electrode With Nipples, Generator |
Highlight: | 300mm Graphite Electrode,UHP Graphite Electrode,High Quality Graphite Electrode |

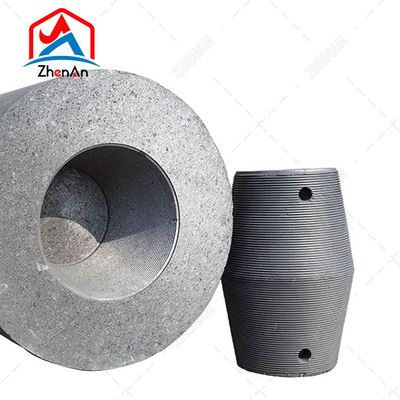

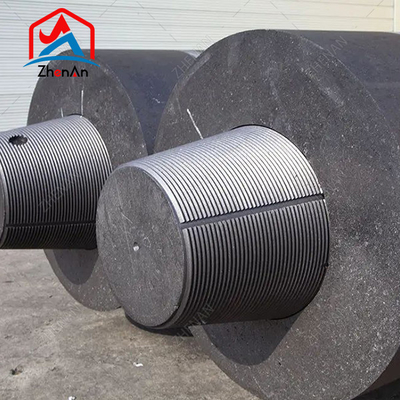

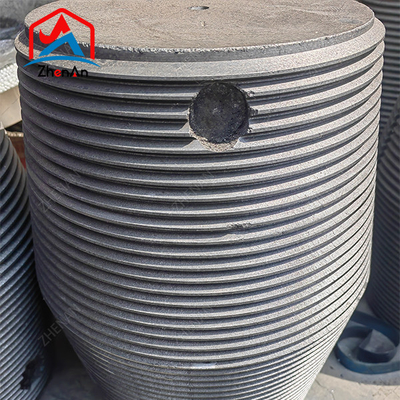

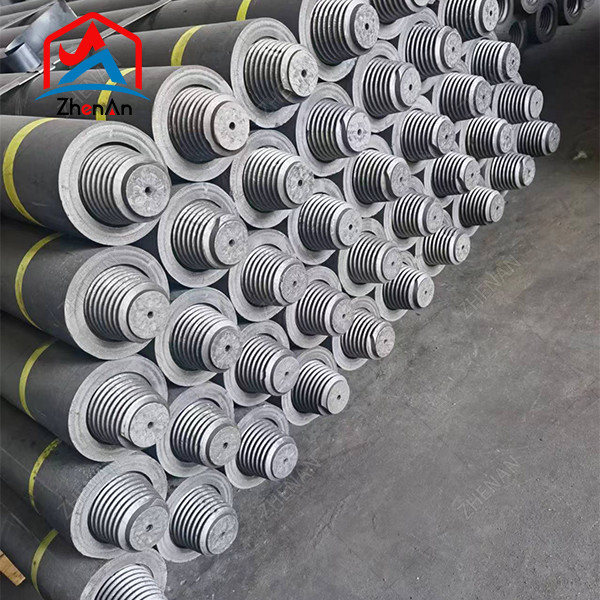

Graphite electrode
High density, high temperature resistance, high mechanical strength, and strong chemical stability.
Surface can be treated with anti-oxidation coating.
Resistant to corrosion, strong acids, and strong alkalis.
Excellent thermal shock resistance, electrical conductivity, and thermal conductivity.
Strong wear resistance and lubricity.
Long service life.
Actual diameters | Actual lengths | ||||||
Mm | Mm | MAX | MIN | Rough spot | Length | Tolerance | Shot Ruler size |
200 | 8 | 204 | 201 | 198 | 1600 | ±100 | -275 |
250 | 10 | 256 | 252 | 248 | 1600 1800 |
||
300 | 12 | 307 | 303 | 299 | |||
350 | 14 | 357 | 353 | 347 | |||
400 | 16 | 409 | 404 | 400 | 1600 1800 2000 |
||
450 | 18 | 460 | 455 | 451 | |||
500 | 20 | 511 | 506 | 502 | |||
600 | 24 | 613 | 607 | 604 | |||
780 | 31.2 | 782 | 776 | 774 | 2000 2200 2400 |
±100 | -400 |
800 | 32 | 802 | 796 | 794 | |||
870 | 34.8 | 872 | 866 | 862 | |||
900 | 36 | 902 | 896 | 892 | |||
920 | 36.8 | 922 | 916 | 912 | |||
960 | 38.4 | 962 | 956 | 952 | |||
1020 | 40.8 | 1022 | 1016 | 1012 | 2200 2600 2800 |
||
1060 | 42.4 | 1062 | 1056 | 1052 | |||
1100 | 44 | 1102 | 1092 | 1092 | |||
1146 | 45.8 | 1148 | 1140 | 1138 | |||
1197 | 47.9 | 1199 | 1191 | 1189 | |||
1250 | 50 | 1252 | 1244 | 1242 | |||
1272 | 50.9 | 1274 | 1266 | 1264 | |||
1305 | 54.4 | 1307 | 1299 | 1297 | |||
1321 | 52.8 | 1323 | 1315 | 1313 | |||
1400 | 56 | 1402 | 1394 | 1392 |
Packing & Delivery
REMARK: the above data is just on standard of YB/T, the actual product is big different from the above. For the actual, be free to contact us, please.
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
Company profile
zhenAn has been in the business of ferroalloy for 30 years now. It is a leading manufacturer and supplier of ferro silicon,silicon manganese,silicon metal,silicon carbide,high carbon silicon and so on.our company is a large-sized production enterprise integrating research, development, production and sales.
Our company locates in Anyang city,Henan province of China a total area of about 15,000 square.With many years growing and developing,our company has domestic advanced smelting furnaces,crushing and screening production lines with annual output of 20000 tons.At the some time has two laboratories and a metallurgical materials testing center with dozens of senior researchers.The products are supplied to many large and medium-sized iron and steel enterprises in China, and exported to Japan, Korea, India, Europe and the United States.
FAQ
Q: Where can I get product and price information?
A: Send us inquiry e-mail, we will contact with you when we receive your email,or contact me on chat app.
Q: What is the term of the delivery?
A: FOB, CFR, CIF, etc.
Q: How to delivery the goods?
A: We deliver the goods by truck to port, or loading in container in factory.
Q: Are you trading company or factory?
A: We are direct factory and have the most advanced machine and about 200 employee in our 30000m2 workshop.
Q: What's the delivery time?
A: 2-3 weeks after got the deposit.
