Supply Graphite Electrode RP HP UHP Graphite Electrode
Characteristics of High-Power Graphite Electrodes
High-power graphite electrodes in the 400-600 US cents range possess specific characteristics that make them suitable for medium to high-power electric arc furnaces. These electrodes have a higher density than traditional electrodes, allowing them to withstand higher temperatures and currents. They also have lower electrical resistance, making the electric arc furnace process more energy-efficient.
Graphite Electrode Current Carrying Capacity
| Nomina diameter |
RP |
HP |
UHP |
| Current Carrying Capacity |
Current Density |
Current Carrying Capacity |
Current Density |
Current Carrying Capacity |
Current Density |
| in |
mm |
A |
A/cm2 |
A |
A/cm2 |
A |
A/cm2 |
| 12 |
300 |
10000-13000 |
14-18 |
13000-17400 |
17-24 |
15000-22000 |
20-30 |
| 14 |
350 |
13500-18000 |
14-18 |
17400-24000 |
17-24 |
20000-30000 |
20-30 |
| 16 |
400 |
18000-23500 |
14-18 |
21000-31000 |
16-24 |
25000-40000 |
19-30 |
| 18 |
450 |
22000-27000 |
13-17 |
25000-40000 |
15-24 |
32000-45000 |
19-27 |
| 20 |
500 |
25000-32000 |
13-16 |
30000-48000 |
15-24 |
38000-55000 |
18-27 |
| 22 |
550 |
32000-40000 |
13-16 |
35000-55000 |
14-22 |
42000-64000 |
17-26 |
| 24 |
600 |
35000-41000 |
13-15 |
41000-61000 |
14-21 |
50000-73000 |
17-25 |
| 28 |
700 |
39000-48000 |
10-12 |
55000-82000 |
14-21 |
67000-99000 |
17-25 |
| 32 |
800 |
43000-54000 |
8-10 |
/ |
/ |
/ |
/ |

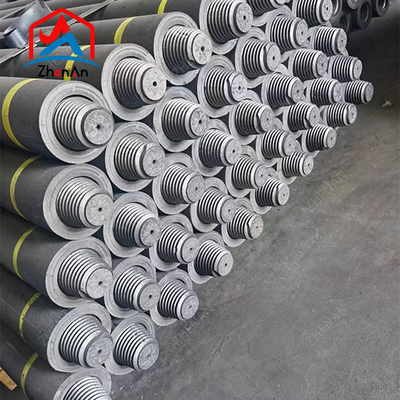

Packing & Delivery
REMARK: the above data is just on standard of YB/T, the actual product is big different from the above. For the actual, be free to contact us, please.
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
Company profile
ZHENAN has been in the business of ferroalloy for 3 years now. It is a leading manufacturer and supplier of ferro silicon,silicon manganese,silicon metal,silicon carbide,high carbon silicon and so on.our company is a large-sized production enterprise integrating research, development, production and sales.
Our company locates in Anyang city,Henan province of China a total area of about 15,000 square.With many years growing and developing,our company has domestic advanced smelting furnaces,crushing and screening production lines with annual output of 20000 tons.At the some time has two laboratories and a metallurgical materials testing center with dozens of senior researchers.The products are supplied to many large and medium-sized iron and steel enterprises in China, and exported to Japan, Korea, India, Europe and the United States.
RFQ
Q: Are you a manufacture or trader?
A: We are truly a manufacturer, we not only can provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
Q : What standards do you have?
A : Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc.The third party testing is all available for us.
Q : What is your lead time?
A : It usually needs about 15- 20 days after receiving the PO.
