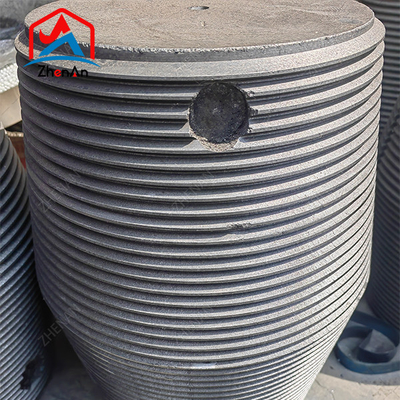

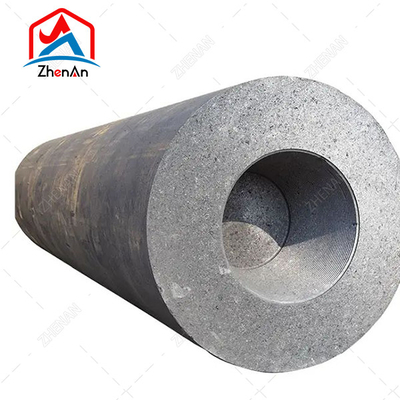

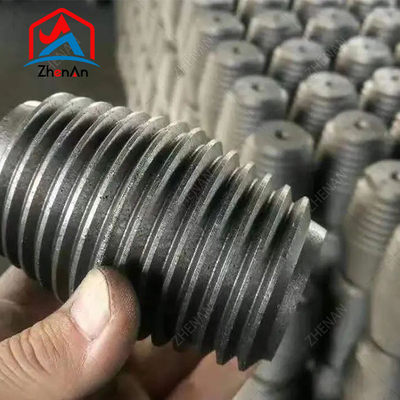

Factory Direct Sales UHP Graphite Electrode With Nipple
Graphite Electrodes
Graphite electrodes are an important component in the production of steel and other metals in electric arc furnaces (EAFs). With the increasing global production of electric steel, the demand for high-power graphite electrodes has grown rapidly. The price range of 400-600 US cents per kilowatt-hour has become the most suitable for graphite electrodes used in 20-50-ton electric arc furnaces.
Graphite Electrode Current Carrying Capacity
| Nomina diameter |
RP |
HP |
UHP |
| Current Carrying Capacity |
Current Density |
Current Carrying Capacity |
Current Density |
Current Carrying Capacity |
Current Density |
| in |
mm |
A |
A/cm2 |
A |
A/cm2 |
A |
A/cm2 |
| 12 |
300 |
10000-13000 |
14-18 |
13000-17400 |
17-24 |
15000-22000 |
20-30 |
| 14 |
350 |
13500-18000 |
14-18 |
17400-24000 |
17-24 |
20000-30000 |
20-30 |
| 16 |
400 |
18000-23500 |
14-18 |
21000-31000 |
16-24 |
25000-40000 |
19-30 |
| 18 |
450 |
22000-27000 |
13-17 |
25000-40000 |
15-24 |
32000-45000 |
19-27 |
| 20 |
500 |
25000-32000 |
13-16 |
30000-48000 |
15-24 |
38000-55000 |
18-27 |
| 22 |
550 |
32000-40000 |
13-16 |
35000-55000 |
14-22 |
42000-64000 |
17-26 |
| 24 |
600 |
35000-41000 |
13-15 |
41000-61000 |
14-21 |
50000-73000 |
17-25 |
| 28 |
700 |
39000-48000 |
10-12 |
55000-82000 |
14-21 |
67000-99000 |
17-25 |
| 32 |
800 |
43000-54000 |
8-10 |
/ |
/ |
/ |
/ |
Packing & Delivery
REMARK: the above data is just on standard of YB/T, the actual product is big different from the above. For the actual, be free to contact us, please.
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
Company profile
ZHENAN has been in the business of ferroalloy for 3 years now. It is a leading manufacturer and supplier of ferro silicon,silicon manganese,silicon metal,silicon carbide,high carbon silicon and so on.our company is a large-sized production enterprise integrating research, development, production and sales.
Our company locates in Anyang city,Henan province of China a total area of about 15,000 square.With many years growing and developing,our company has domestic advanced smelting furnaces,crushing and screening production lines with annual output of 20000 tons.At the some time has two laboratories and a metallurgical materials testing center with dozens of senior researchers.The products are supplied to many large and medium-sized iron and steel enterprises in China, and exported to Japan, Korea, India, Europe and the United States.
RFQ
Q: Are you a manufacture or trader?
A: We are truly a manufacturer, we not only can provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
Q : What standards do you have?
A : Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc.The third party testing is all available for us.
Q : What is your lead time?
A : It usually needs about 15- 20 days after receiving the PO.
