High Quality And Competitive Price For Graphite Electrode
High-power graphite electrodes
However, the production of high-power graphite electrodes faces challenges such as high-quality requirements and limited resources of needle coke. Therefore, the cost of high-power graphite electrodes is relatively high compared to other types of graphite electrodes.
To address these challenges, researchers and manufacturers are exploring new materials and production methods to reduce costs and improve the performance of high-power graphite electrodes. For example, some companies are developing new carbon materials, such as graphene, that may replace needle coke in the production of graphite electrodes.
In addition to these technological advancements, the production of high-power graphite electrodes must also focus on sustainability and environmental responsibility. Many manufacturers are implementing measures to reduce their carbon footprint and minimize waste and pollution during the production process.
In conclusion, high-power graphite electrodes are a crucial component of modern industrial processes. Their unique properties make them suitable for various high-temperature and high-stress environments and are widely used in various applications across different industries. While the production of high-power graphite electrodes faces challenges and high costs, continuous research and development efforts aim to improve their performance and sustainability, further supporting their applications in modern industries.
Graphite Electrode Technical Specification
| Item |
Unit |
RP |
HP |
UHP |
| 250-400 |
450-800 |
300-400 |
450-700 |
300-400 |
450-700 |
| Electric Resistivity |
Electrode |
μΩ.m |
7.5-8.6 |
7.5-8.8 |
5.5-6.8 |
5.5-7.0 |
4.6-6.0 |
4.8-6.2 |
| Nipple |
4.5-5.5 |
4.0-5.0 |
3.5-4.5 |
| Bending Strength |
Electrode |
Mpa |
≥8.0 |
≥11.0 |
≥11.0 |
| Nipple |
≥15.0 |
≥16.0 |
≥18.0 |
| Elastic Modulus |
Electrode |
Gpa |
≤9.0 |
≤11.0 |
≤13.0 |
| Nipple |
≤13.0 |
≤14.0 |
≤15.0 |
| Bulk Density |
Electrode |
g/cm3 |
1.55-1.65 |
1.63-1.73 |
1.65-1.75 |
| Nipple |
1.70-1.75 |
1.73-1.80 |
1.75-1.82 |
| Ash |
Electrode |
% |
≤0.3 |
| Nipple |
| CTE(100-600)ºC |
Electrode |
10-6/ºC |
2.00-2.50 |
1.80-2.00 |
1.30-1.50 |
| Nipple |
|
1.50-1.80 |
1.50-1.80 |
1.20-1.40 |

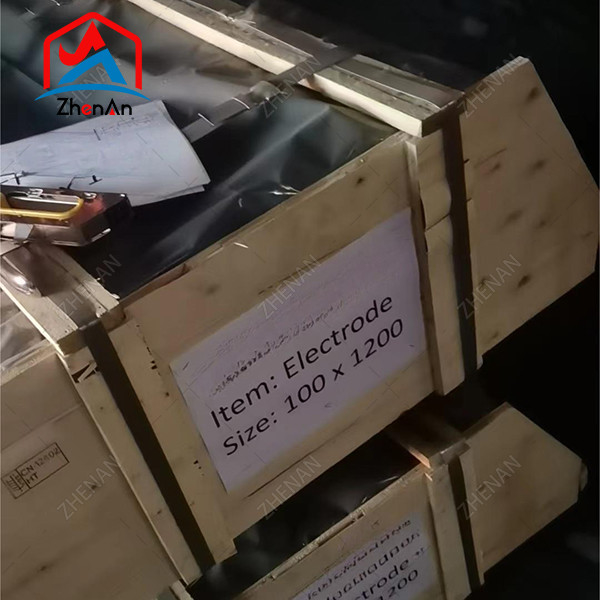

Packing & Delivery
REMARK: the above data is just on standard of YB/T, the actual product is big different from the above. For the actual, be free to contact us, please.
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
Company profile
ZHENAN has been in the business of ferroalloy for 3 years now. It is a leading manufacturer and supplier of ferro silicon,silicon manganese,silicon metal,silicon carbide,high carbon silicon and so on.our company is a large-sized production enterprise integrating research, development, production and sales.
Our company locates in Anyang city,Henan province of China a total area of about 15,000 square.With many years growing and developing,our company has domestic advanced smelting furnaces,crushing and screening production lines with annual output of 20000 tons.At the some time has two laboratories and a metallurgical materials testing center with dozens of senior researchers.The products are supplied to many large and medium-sized iron and steel enterprises in China, and exported to Japan, Korea, India, Europe and the United States.
RFQ
Q: Are you a manufacture or trader?
A: We are truly a manufacturer, we not only can provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
Q : What standards do you have?
A : Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc.The third party testing is all available for us.
Q : What is your lead time?
A : It usually needs about 15- 20 days after receiving the PO.
