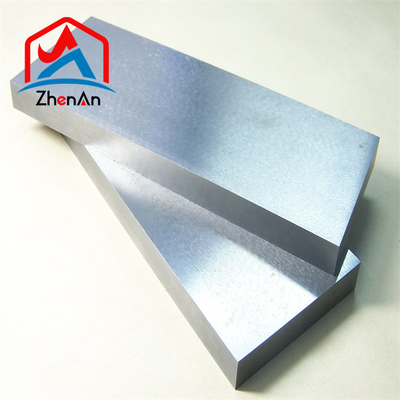

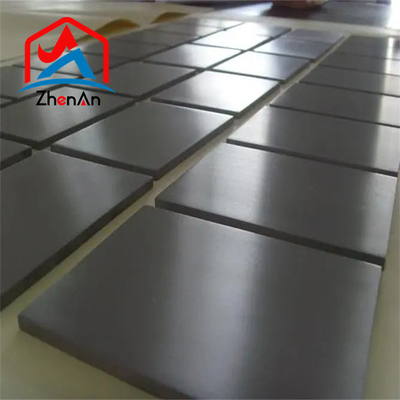

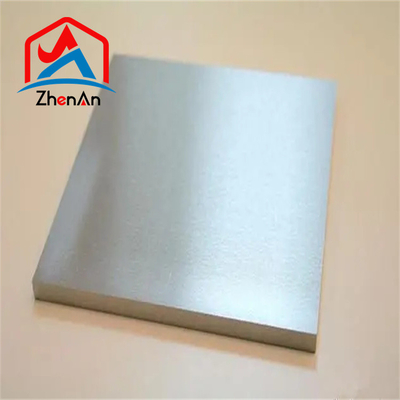

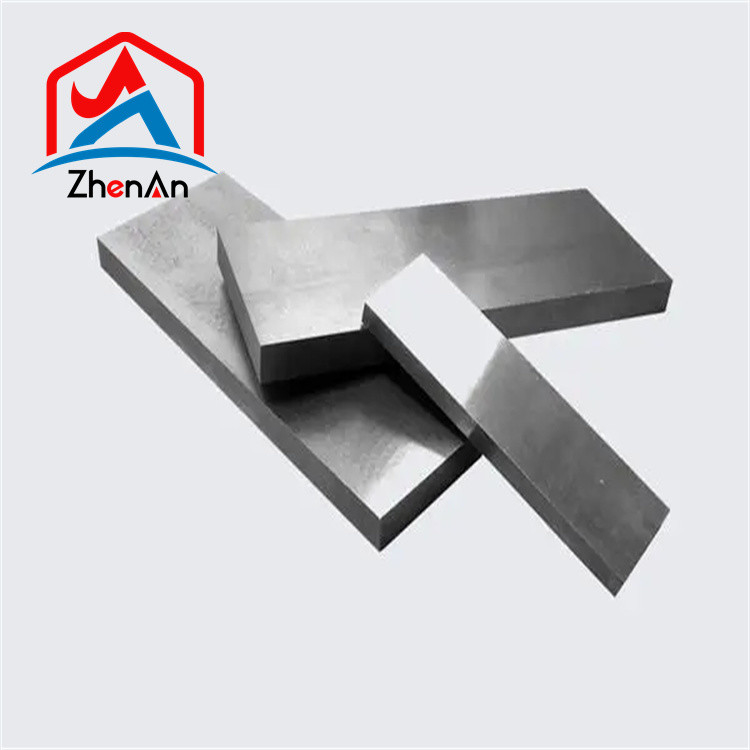

High Purity 99.95% Grade Mo1 Molybdenum Plate
Description:
Pure Molybdenum plates are widely used in tooling for furnace molds and accessories, and are raw materials for assembly components in the electronics and semiconductor industries. We can supply molybdenum plates according to customers' requirements.
Specifications:
hickness
[mm] |
tol
[mm] |
width
[mm] |
tol
[mm] |
length
[mm] |
tol
[mm] |
quality |
flatness
in % |
| 2.000 |
+/- 0.150 |
500.0 |
+/- 0.80 |
1000 |
+2/-0 |
hot rolled, pickled |
<1% |
| 3.000 |
+/- 0.300 |
400.0 |
+/- 0.80 |
800 |
+2/-0 |
hot rolled, pickled |
<1% |
| 5.000 |
+/- 0.200 |
400.0 |
+/- 1.00 |
700 |
+2/-0 |
hot rolled, pickled |
<1% |
| 10.000 |
+/- 0.500 |
400.0 |
+/- 1.50 |
500 |
+2/-0 |
hot rolled, pickled |
<1% |
| 20.000 |
+/- 1.000 |
350.0 |
+/- 1.50 |
500 |
+2/-0 |
hot rolled, pickled |
<1% |
|
| 30.000 |
+/- 1.000 |
350.0 |
+/- 1.50 |
500 |
+2/-0 |
hot rolled, pickled |
<1% |
|
| 40.000 |
+/- 1.000 |
300.0 |
+/- 1.50 |
400 |
+2/-0 |
hot rolled, pickled |
<1% |
| Our testing for molybdenum sheets |
| Fe |
Ni |
C |
Al |
O |
N |
| 0.004 |
0.002 |
0.0028 |
0.0005 |
0.005 |
0.002 |
| Si |
Ca |
Mg |
Cd |
Sb |
Sn |
| 0.0013 |
< 0.001 |
< 0.0005 |
< 0.001 |
< 0.0005 |
< 0.0005 |
| P |
Cu |
Pb |
Bi |
Mo |
|
| < 0.001 |
< 0.0005 |
< 0.0005 |
< 0.0005 |
>99.95% |
|
Molybdenum plates are used to make lighting source accessories, high temperature resistant shields, high temperature resistant containers, etc.
Molybdenum plates are used to heat electronic vacuum furnaces and insulation screens. Molybdenum discs are used to produce molybdenum ships and power semiconductors, and are the raw materials for vacuum lighthouses. The formed isostatically pressed molybdenum powder is formed by sintering the molybdenum thin slab in an intermediate frequency furnace, hot rolling, annealing, alkali washing, cold rolling, cutting and flattening. The molybdenum sheet has a bright, smooth surface and good reprocessing characteristic.
The high-quality molybdenum plates we produce are our outstanding flagship products. The minimum thickness of the thin molybdenum plates we supply is 0.05mm and the width is 610mm. The longest molybdenum plate is 3,000mm. Our standard molybdenum sheets are 24" x 100" with .015" and . 01" thicknesses.
In addition to molybdenum plates, we also supply pure molybdenum plates, TZM molybdenum plates, and MoLa alloy plates.
FAQ:
Q1. Are you the factory or the trading company?
A1. We are the direct-sale factory with our own trading company. Our factory has 20 years experience in the filed of alloy products.
Q2. What's your main products?
A2. Our main products are all kinds of alloy materials for foundry and casting industry, including ferro silicon magnesium (rare earth magnesium alloy), ferro silicon, ferro manganese, silicon manganese alloy, silicon carbide, ferro chrome and cast iron, etc.
Q3. How can you guarantee the quality?
A3. We have the most professional workers for production and testing of the products, most advanced production equipment and testing equipment. For every batch of products, we will test the chemical composition and to make sure it can reach the quality standard that customers required before they are dispatched to the customers.
Q4. Can I get sample from you for checking the quality?
A4. Yes, we can provide free samples to customers for them to check the quality or do the chemical analyses, but please tell us the detailed requirement for us to prepare the right samples.
Q5. What's your MOQ? Can I buy a container with different products mixed?
A5. Our MOQ is one 20 feet container, about 25-27 tons. You can buy different products in a container mixed, it is usually for trial order and we hope that can buy 1 or 2 products in a full container in future after you testing our products are good quality.
