ASTM standards Molybdenum Tzm Moly Bar for Furnace
Description:

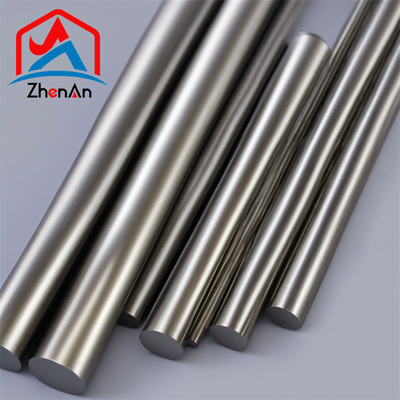

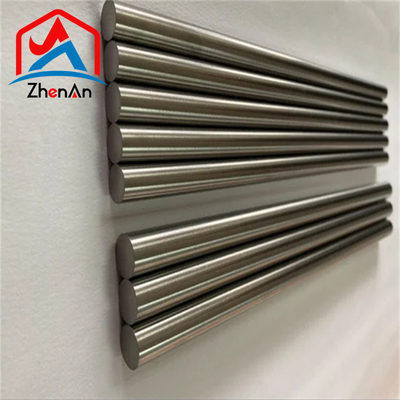

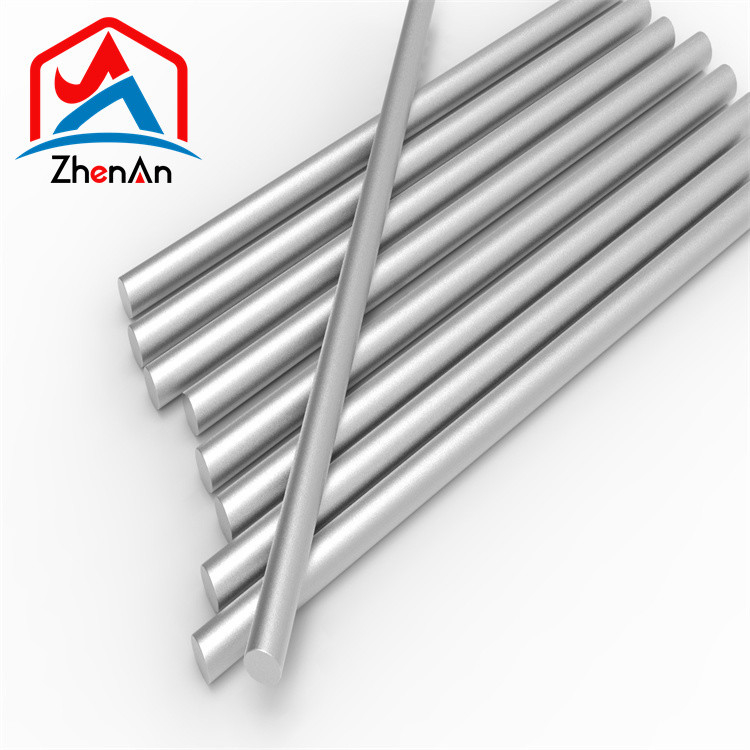

Cleaned TZM rod is produced by caustic processing. The surface of cleaned TZM rod shows metallic and smoother.We have Molybdenum Tube , Molybdenum Crucible , Molybdenum Copper Alloy Mo-La Alloy and other products.If you are interested our products, contact us now! We can customise our products according to customer requirements!
Specifications:
TZM ROD STANDARD DIAMETER TOLERANCES (INCHES)
| Diameter |
Black/Clean |
Ground |
| .020 to .025 |
± .001 |
± .001 |
| .025 to .070 |
± .0015 |
± .001 |
| .070 to .200 |
± .002 |
± .001 |
| .200 to .250 |
± .007 |
± .001 |
| .250 to .435 |
± .007 |
± .0015 |
| .425 to .750 |
± .010 |
± .003 |
| .750 to 1.000 |
± .015 |
± .005 |
| 1.000 to 1.250 |
± .015 |
± .005 |
| 1.250 to 1.750 |
± .025 |
± .005 |
MECHANICAL COMPOSITION OF TZM ROD
| Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation L = 5 D % |
| 965 MPa, 140000 psi |
860 MPa , 125000 psi |
6 – 10 |
Application:
Oxidation resistance: TZM alloy rod has good oxidation resistance at high temperatures and can resist oxidation and oxidants in high-temperature atmospheres, such as oxygen in the air. The dense oxide layer it forms can provide certain protection and slow down the oxidation rate of materials.
High temperature corrosion resistance: TZM alloy rod shows good corrosion resistance to some corrosive media at high temperatures. It is resistant to corrosion by many acidic and alkaline solutions, including nitric acid, sulfuric acid, phosphoric acid, hydrofluoric acid, etc. In addition, it can also withstand corrosion from some metal melting and high-temperature molten salt environments.
Heat cycle resistance: TZM alloy rods can withstand thermal stress and thermal shock caused by thermal cycles in high-temperature furnaces, and have good heat cycle resistance.
Wear resistance: TZM alloy rods have high hardness and wear resistance and can resist a certain degree of friction and wear.
FAQ:
Q : How can you control your quality?
A : For each production processing, ZhenAn have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
Q: Are you a manufacture or trader?
A: Both, we not only can provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
Q : Do you provide free samples?
A : Of course, free samples are available.
Q: What is your lead time?
A : It usually needs about 15- 20 days after receiving the PO.
