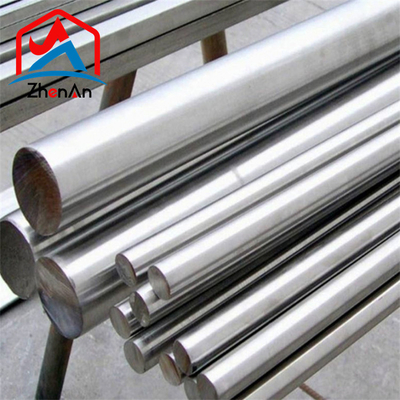

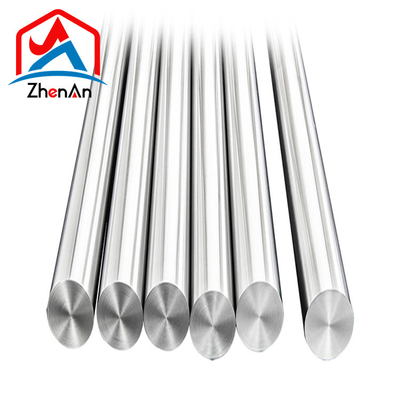

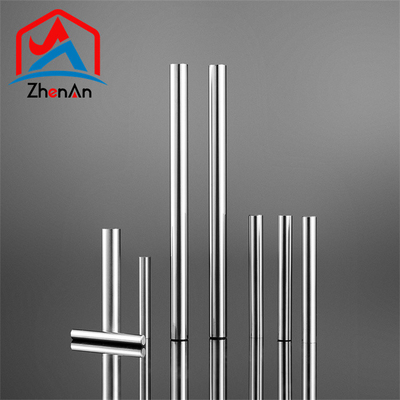

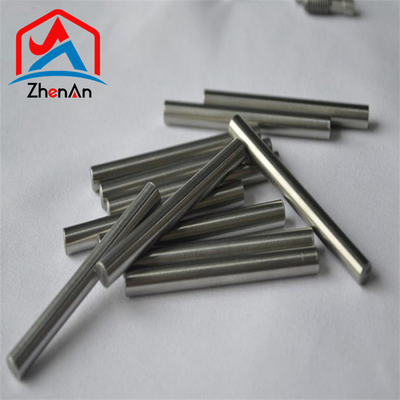

High Quality Tzm Molybdenum Rods and Ground Alloy Bars
Description:
ASTM B386 TZM Bar is a high-temperature alloy that has the following differences compared with other alloys.
Specifications:
CHEMICAL COMPOSITION OF TZM ROD
| Ti |
Mo |
Zr |
C |
| 0.5 |
99.40 |
0.08 |
0.02 |
MECHANICAL COMPOSITION OF TZM ROD
| Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation L = 5 D % |
| 965 MPa, 140000 psi |
860 MPa , 125000 psi |
6 – 10 |
Application:
Different compositions: The main components of ASTM B386 TZM alloy are molybdenum (Mo), titanium (Ti) and zirconium (Zr), usually containing 0.50-0.55% titanium, 0.06-0.12% zirconium, and the balance molybdenum and other elements . In comparison, the components of other high-temperature alloys usually include nickel (Ni), chromium (Cr), iron (Fe), and cobalt (Co).
High density: ASTM B386 TZM alloy has a density of approximately 10.2 g/cm³, which is higher than other high-temperature alloys such as nickel-based alloys and cobalt-based alloys.
High melting point: The melting point of ASTM B386 TZM alloy is about 2,470°C, which is higher than that of other high-temperature alloys.
Excellent mechanical properties: ASTM B386 TZM alloy has excellent mechanical properties, including high strength, high hardness, high wear resistance, high tensile strength, high yield strength and good creep resistance.
Good oxidation resistance: ASTM B386 TZM alloy has good oxidation resistance and can be used at high temperatures for a long time without being affected by oxidation.
FAQ:
Q : How can you control your quality?
A : For each production processing, ZhenAn have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
Q: Are you a manufacture or trader?
A: Both, we not only can provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
Q : Do you provide free samples?
A : Of course, free samples are available.
Q: What is your lead time?
A : It usually needs about 15- 20 days after receiving the PO.
