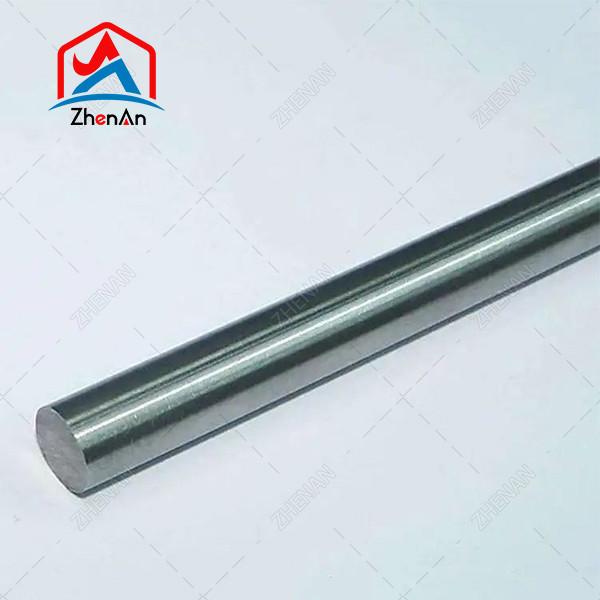

3mm 6mm Molybdenum Round Bar TZM Pure Hot Rolled

Large Image : 3mm 6mm Molybdenum Round Bar TZM Pure Hot Rolled

Product Details:

Place of Origin:	China
Brand Name:	ZhenAn
Certification:	ISO9001:2015
Model Number:	Molybdenum

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	1MT big bag or as per customer request
Delivery Time:	7-10 work days after received the payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000MT/per Month

Contact Now

3mm 6mm Molybdenum Round Bar TZM Pure Hot Rolled

Description

Color:	Silver	Density:	10.22 G/cm3
Hs Code:	81019500	Payment Term:	T/T, L/C, Etc.
Process:	Cold Rolled,hot Rolled,riveting	Technique:	Power Metallurgy
Highlight:	3mm molybdenum round bar , 6mm molybdenum round bar

3mm 6mm TZM Pure Molybdenum Bar Other Metals & Metal Products Molybdenum Alloy Rod

TZM alloys and TIG welding
TIG welding is called tungsten inert gas shielded welding. It is a welding method that usually uses tungsten electrode as the electrode material and argon gas as the protective gas. In TIG welding, manufacturers usually use thoriated tungsten electrodes, cerium tungsten electrodes and zirconium tungsten electrodes as electrode materials.

3mm 6mm Molybdenum Round Bar TZM Pure Hot Rolled 0

According to the type of power source, TIG welding can be divided into three types: DC TIG welding, AC TIG welding and pulse TIG welding. According to the operating method, TIG welding can be divided into: manual welding, automatic welding, and semi-automatic welding, among which GTAW is the most widely used.

3mm 6mm Molybdenum Round Bar TZM Pure Hot Rolled 1

Using TIG welding to weld TZM alloy can effectively prevent the intrusion of oxygen and nitrogen during the welding process. The study found that the optimal process parameters for TIG welding of TZM alloy are: welding current: 210A, arc voltage 25V, welding speed: 4mm/s, argon gas flow: 8~12L/min. Analysis of the microstructure of the TZM alloy welded joint found that the grains in the welding area were coarse and contained a small number of black spots, but the weld structure was dense and there were certain cracks.

3mm 6mm Molybdenum Round Bar TZM Pure Hot Rolled 2

In addition, the coarse-grained zone and transition zone are affected by thermal effects, which essentially eliminates the plate-like grain structure of the alloy, and recrystallizes into coarse equiaxed grains, while the original base material still maintains the lamellar crystal and braided structure. The elimination of the plate-like grain structure weakens the strength of TZM alloys.

3mm 6mm Molybdenum Round Bar TZM Pure Hot Rolled 3

TZM alloy (molybdenum zirconium-titanium alloy) and physical properties of pure molybdenum compared as follows:

Material	density /g·cm-3	Melting point /℃	Boiling point /℃
TZM alloy (Ti0.5/Zr0.1)	10.22	2617	4612
Mo	10.29	2610	5560

3mm 6mm Molybdenum Round Bar TZM Pure Hot Rolled 4

Mechanical Properties of TZM alloy (molybdenum zirconium-titanium alloy) (ri0.5 / Zr0.1) as follows:

Mechanical Properties	Elongation (%)	elasticity modulus GPa	Tensile strength Mpa	yield strength Mpa	fracture toughness MP·m1/2)
Value	<20	320	685	560-1150	5.8-29.6

3mm 6mm Molybdenum Round Bar TZM Pure Hot Rolled 5

TZM alloy (molybdenum zirconium-titanium alloy) high-temperature tensile strength and elongation:

Temperature	tensile strength(Mpa)	Elongation
RT	1140-1210	7.5-13.0
1000	700-720	5.2
1200	320-360	9.0
1300	190-210	11.5-13.5
1400	140-170	11-16

3mm 6mm Molybdenum Round Bar TZM Pure Hot Rolled 6
TZM alloy (molybdenum zirconium-titanium alloy) thermal performance and electrical properties:

Performance	coefficient of thermal expansion /K-1(20~100℃)	thermal conductivity W/m·K	Using maximum temperature in air ℃	ResistivityΩ·m
Value	5.3X10-6	126	400	(5.3~5.5)X10-8

3mm 6mm Molybdenum Round Bar TZM Pure Hot Rolled 7
