ASTM B265 ASME Sb265 Gr1 Gr2 Gr5 Gr9 Pure Titanium Plate
Description:

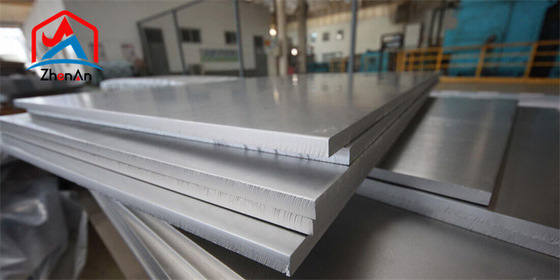

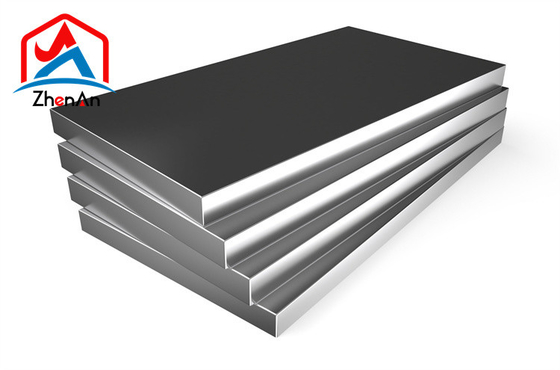

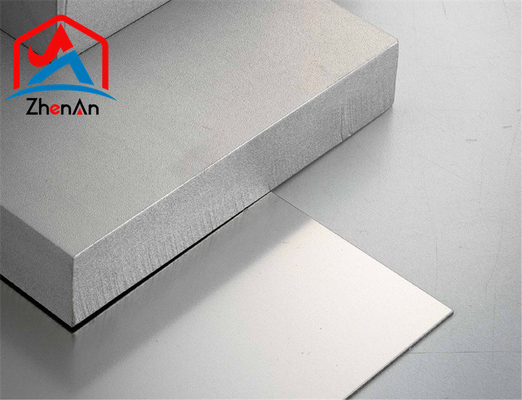

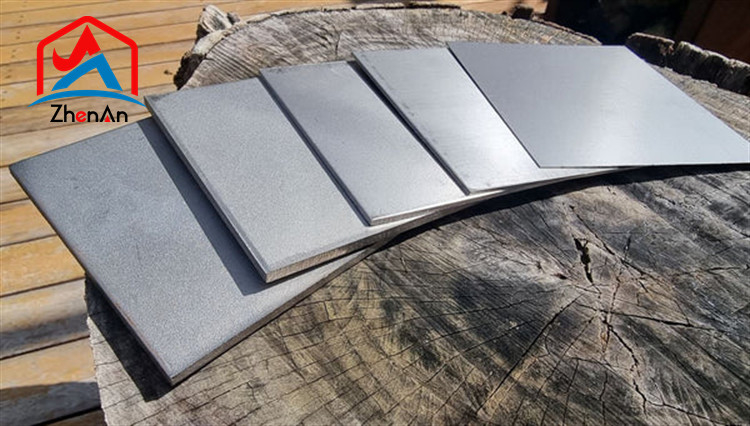

Titanium plate is flat, thin pieces of material made from titanium, a lightweight and corrosion-resistant metal. Titanium is known for its high strength-to-weight ratio, excellent durability, and resistance to corrosion, making it a popular choice in various industries.
Titanium plates are flat sheets made from titanium, a lightweight and durable metal known for its high strength-to-weight ratio, corrosion resistance, and biocompatibility. These plates find applications in various industries due to their unique combination of properties.
Specifications:
| Product Name |
Titanium sheet plate |
| Material Grade |
Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6Al-4V),Gr7,Gr9,Gr11,Gr12,Gr23(Ti-6Al-4V Eli) |
| Characteristic |
The board surface is flat, bendable, and can be stamped |
| Advantage |
Low density(4.51g/cm³), high melting point(1660℃), strong corrosion resistance, high strength, and good plasticity |
| Size |
Thickness 0.5-60mm, maximum width 2000mm, maximum length 12000mm |
| Production Status |
Hot working condition (R), cold working condition (Y), annealed condition (M) |
| Standard |
ASTM B265 |
| Surface Treatment |
Acid washing, sandblasting, polishing |
| Application |
Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc. |
Titanium Grade 1 is an unalloyed, low strength titanium product containing low oxygen with high formability; this titanium gradeis used in airframes, heat exchangers and desalination units.
Titanium Grade 2 is an unalloyed, medium strength titanium product. This titanium grade is used in airframes, aircraft engines and marine parts; good weldability and corrosion resistance are its distinguishing characteristics.
Titanium Grade 3 is an unalloyed, high strength, titanium product providing excellent corrosion resistance and good weldability. This titanium grade is primarily used in airframe and aircraft engine parts.
Titanium Grade 4 is the highest strength pure unalloyed titanium product. This titanium grade is used almost exclusively for airframe, aircraft engine parts, marine, surgical implants, hydraulic tubing. Good formability and corrosion resistance are its hallmark.
Titanium Grade 5 (6AL-4V)is an alloyed titanium product containing 6% Aluminum and 4% Vanadium; is a medium strength product. This titanium grade is predominantly used in airframe and turbine engine parts; and for use in surgical implants. Technical Info Titanium 6AL – 4V ELI is an alloyed titanium product containing 6% Aluminum and 4% Vanadium, ELI (Extra Low Interstitial).
Application:
1. Aerospace field
2. Telegram communication
3. Medical treatment
4. Automatic control
5. Digital instrument
