ASTM B863 Titanium Wires 0.8mm Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr9 Gr12
Description:

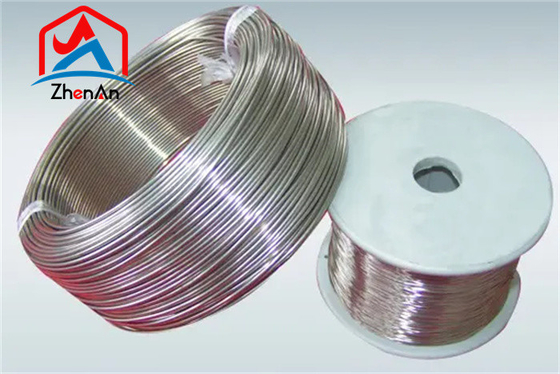

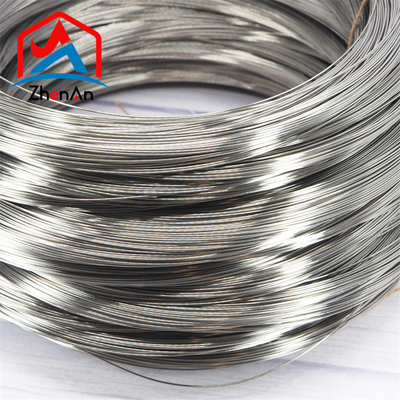

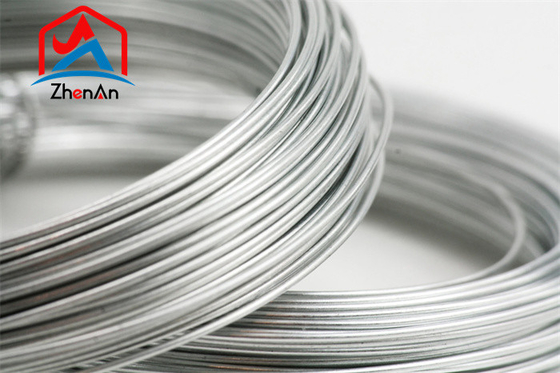

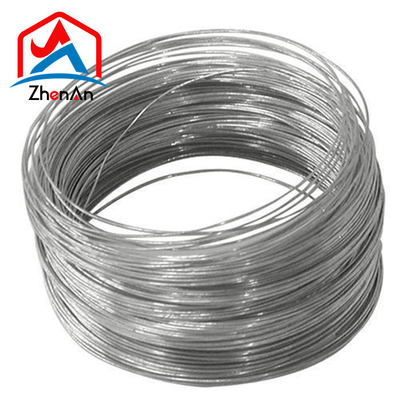

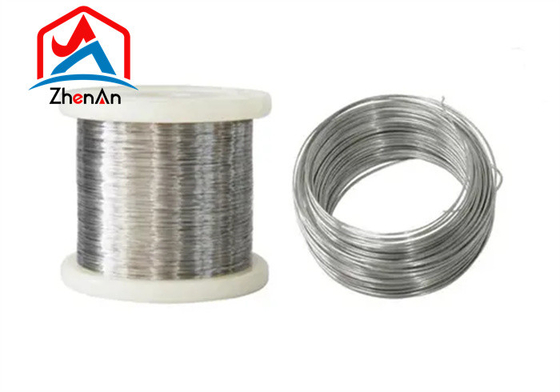

ZhenAn stocks a wide range of titanium wire, including a complete line of commercially pure titanium wire and medical titanium wire. It can be supplied in random lengths or cut into fixed lengths.
Titanium is a silver-white metal with many excellent properties. For example, the density of titanium is 4.54g/cm³, which is 43% lighter than steel, but its mechanical strength is similar to that of steel. And titanium is resistant to high temperatures and has a melting point of 1942K, which is nearly 500K higher than steel. In recent years, with the continuous research of titanium, more and more products made for titanium can be found in our daily life and titanium wires are one of them.
Specifications:
| Titanium Wire Properties (Theoretical) |
|
| Molecular Weight |
47.86 (Note: all properties listed are for bulk titanium metal) |
| Appearance |
Silvery |
| Melting Point |
1668 °C |
| Boiling Point |
3560 °C |
| Density |
4.54 g/cm3 |
| Solubility in H2O |
N/A |
| Crystal Phase / Structure |
Hexagonal |
| Electrical Resistivity |
42.0 microhm-cm @ 20 °C |
| Electronegativity |
1.45 Paulings |
| Heat of Fusion |
14.15 kJ/mol |
| Heat of Vaporization |
425 kJ/mol |
| Poisson's Ratio |
0.32 |
| Specific Heat |
0.125 Cal/g/K @ 25 °C |
| Tensile Strength |
140 MPa |
| Thermal Conductivity |
21.9 W/(m·K) @ 298.2 K |
| Thermal Expansion |
8.6 µm·m-1·K-1 (25 °C) |
| Vickers Hardness |
830–3420 MPa |
| Young's Modulus |
116 GPa |
Application:
1) Orthopedic implants : artificial joints, metal plate, orthopedic nails, metal orthopedic use rods, intramedullary nail,bone needles, spinal fixation devices.
2) Heart medicine implants:artificial heart valves, cardiac pacemakers, cardiac catheters and stents within blood vessels.
3) Ophthalmic implants: artificial crystal.
4) Dental Implants: Dental Implant, traction nails,nail plant root canal, internal fixation devices ect.
5) Filling Materials : breast fillings intraocular filling materials, filling materials in orthopedics.
FAQ:
Q: Are you a trading company or a manufacturer?
A: we are a manufacturer located in Anyang City, Henan Province,China.
Q: What's the payment term?
A: We accept T/T, D/P, L/C.
