Product Details:
|
| Product Name: | Zirconia Insert | Sample: | Avaliable |
|---|---|---|---|
| ZrO2(%): | ≥95.5 | Size: | Customizable |
| Payment Type: | L/C,T/T | Packaging: | Wooden Pallet |
| Highlight: | Refractory Materials Zirconia Inserts,Steel Making Refractory Materials,Steel Making Zirconia Inserts |
||

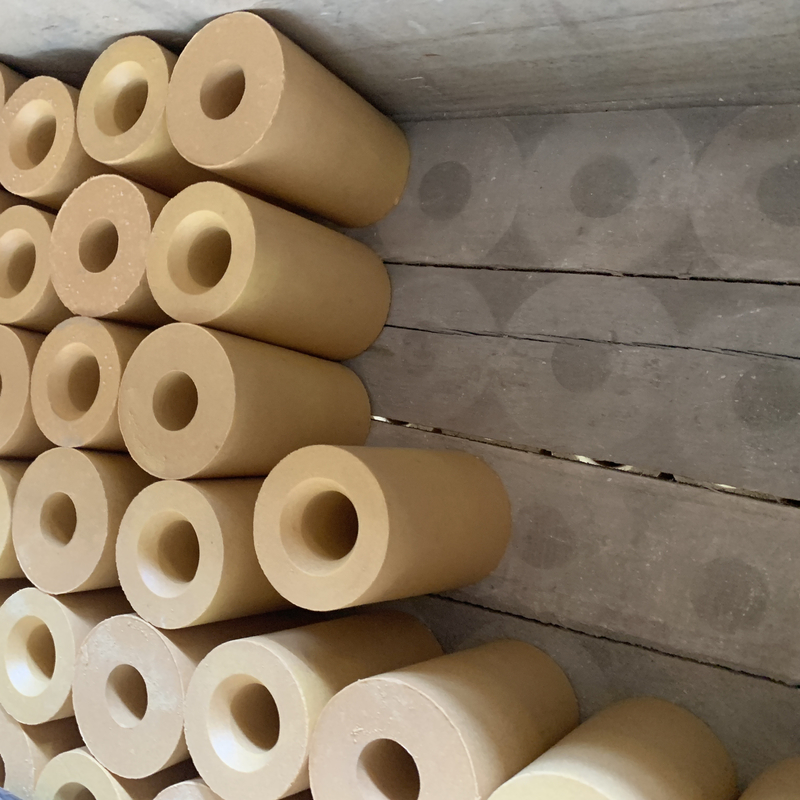

Refractory Zirconia Inserts For Tundish Nozzle
Description
Tundish nozzle zirconia is a combination of inner core and outer core. The inner core consists of stable zirconia and zirconium sand, produced by moulding machine and high temperature calcination. The shell is made of zirconium and corundum, and is formed by moulding machines and low-temperature baking.
Zirconia inserts are made of zirconia and imported baddeleyite,formed by high tension and baked in high temperature when stablized by special technology.
Using for metering nozzle, tundish upper nozzle, quick nozzle change upper nozzle and lower nozzle, and other special-shaped nozzle for steel making continuous casting.
Specifications
| Chemical and Physical Properties | Zirconia insert | ||||
| ZrO2 ≥ % | 60 | 70 | 80 | 90 | 95 |
| Apparent porosity ≤ | 21 | 20 | 18 | 15 | 6 |
| Bulk density g/cm3 ≥ | 3.70 | 3.90 | 4.0 | 4.35 | 5.2 |
| Refractories ≥ C | 1800 | 1800 | 1850 | 1900 | 1900 |
Packing & Delivery
Packing: 1 ton big bag, 20-25mt in 20' container
Our Services
We can try our best to provide you the good services as below:
1.We have Experienced staffs .
2.Provide kinds of certificates.
3.24 hours on line to answer all your questions .
4.The content packing particle size may be based on customer demand.
5.Quality can be guaranteed. we provide safe products to our users.
